Lubrication system/Oil pump with drive for BMW 3 Series E46 330xd (2003)

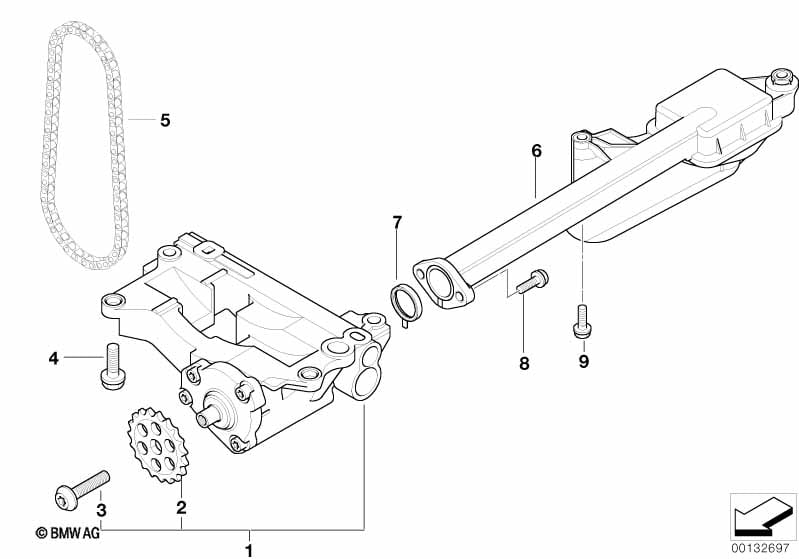

This Lubrication system/Oil pump with drive technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330xd. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil pump | 2 | 11417789838 | $364.55 | +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Collar screw | M6X18-ZNS3 | 1 | 11537804636 | $0.60 | Shop at ECS Tuning | ||||
| 02 | Oil pump sprocket | 1 | 11412247304 | $15.00 | Shop at ECS Tuning | |||||
| 03 | Torx bolt | M8X35 | 1 | 11412248162 | $1.03 | Shop at ECS Tuning | ||||
| 04 | Hex bolt with washer | M8X28-Z1-PHR | 4 | 07119904507 | $0.53 | Shop at ECS Tuning | ||||
| 05 | Chain | 1 | 11412249745 | $30.08 | Shop at ECS Tuning | |||||
| 06 | Intake tube | 1 | 11417785589 | Shop at ECS Tuning | ||||||
| 07 | Gasket Asbestos Free | 1 | 11412247885 | Shop at ECS Tuning | ||||||
| 08 | Collar screw | M6X18-ZNS3 | 2 | 11537804636 | $0.60 | Shop at ECS Tuning | ||||
| 09 | Collar screw | M6X18-ZNS3 | 1 | 11537804636 | $0.60 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 330xd Lubrication system/Oil pump with drive?
- This technical diagram illustrates the Lubrication system/Oil pump with drive within the Engine group for the 3 Series E46 330xd produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Oil pump (Part #11417789838).
- Which models use the hardware listed in this Lubrication system/Oil pump with drive?
- The hardware and components featured in the Lubrication system/Oil pump with drive are specific to the 3 Series E46 330xd produced during 2003. These technical specifications ensure that parts like the Oil pump (11417789838) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Lubrication system/Oil pump with drive assembly?
- Each item in the Lubrication system/Oil pump with drive corresponds to the numbered list below the illustration. For the 3 Series E46 330xd, you can identify the Oil pump by locating its position on the schematic, which then links to the official BMW part number 11417789838 for the Engine section.
