Belt Drive-Vibration Damper for BMW 3 Series E46 320i (2001)

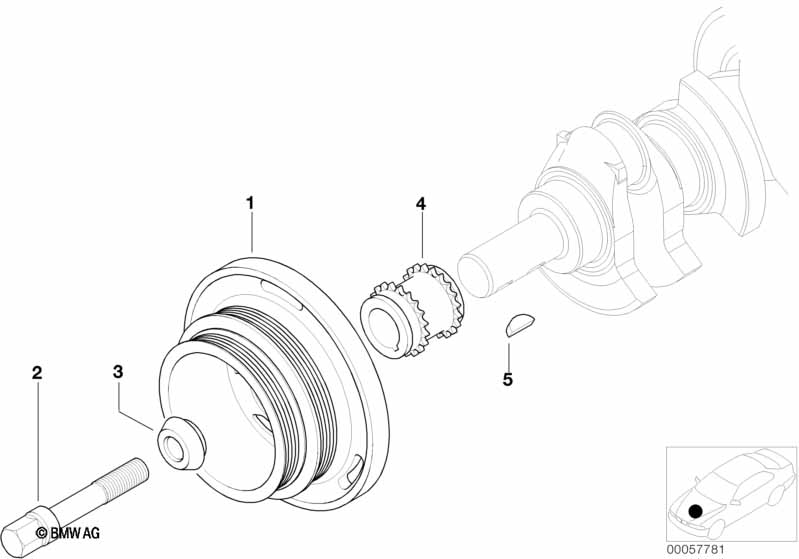

This Belt Drive-Vibration Damper technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Vibration damper | 1 | 09/2002 | 11231438995 | $563.33 | Shop at ECS Tuning | ||||
| 02 | Hex bolt | 1 | 11211720633 | $5.83 | Shop at ECS Tuning | |||||
| 03 | Washer | 1 | 11231288660 | $8.10 | Shop at ECS Tuning | |||||
| 04 | Sprocket | 1 | 11211719984 | $71.52 | Shop at ECS Tuning | |||||
| 05 | Woodruff key | 5X6.5 | 2 | 07119951480 | $0.88 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 320i Belt Drive-Vibration Damper?
- This technical diagram illustrates the Belt Drive-Vibration Damper within the Engine group for the 3 Series E46 320i produced during 2001. It provides a detailed exploded view of the components, identifying key parts such as the Vibration damper (Part #11231438995).
- Which models use the hardware listed in this Belt Drive-Vibration Damper?
- The hardware and components featured in the Belt Drive-Vibration Damper are specific to the 3 Series E46 320i produced during 2001. These technical specifications ensure that parts like the Vibration damper (11231438995) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Belt Drive-Vibration Damper assembly?
- Each item in the Belt Drive-Vibration Damper corresponds to the numbered list below the illustration. For the 3 Series E46 320i, you can identify the Vibration damper by locating its position on the schematic, which then links to the official BMW part number 11231438995 for the Engine section.
