Crankcase-Ventilation/oil separator for BMW 3 Series E46 318i (2005)

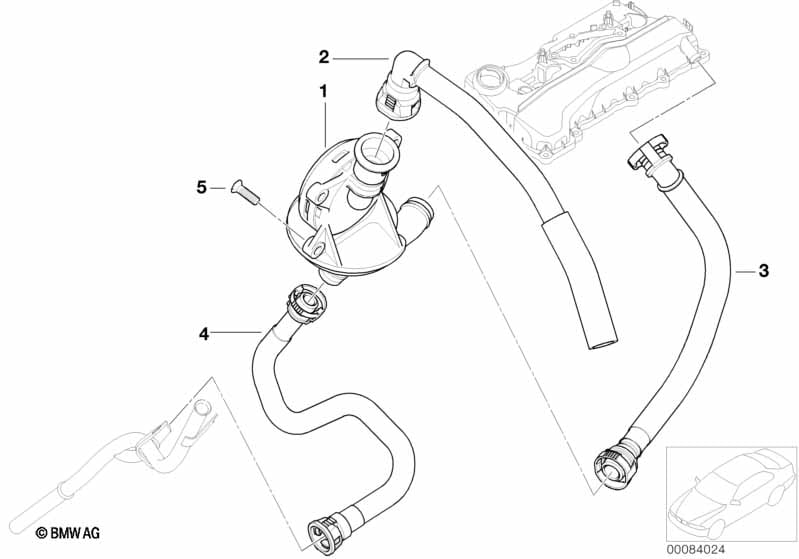

This Crankcase-Ventilation/oil separator technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil separator | 1 | 11617503520 | $44.95 | Shop at ECS Tuning | |||||
| For vehicles with Cold-climate version |
S842A=Yes |
|||||||||
| 01 | Oil separator | 1 | 11617516007 | Shop at ECS Tuning | ||||||
| 02 | Vent hose | 1 | 11157503524 | $33.88 | Shop at ECS Tuning | |||||
| 03 | Connecting line | 1 | 11157503523 | $30.93 | Shop at ECS Tuning | |||||
| For vehicles with Cold-climate version |
S842A=Yes |
|||||||||
| 03 | Connecting line | 1 | 11157511341 | Shop at ECS Tuning | ||||||
| 04 | Return pipe | 1 | 11157513903 | $30.75 | Shop at ECS Tuning | |||||
| 05 | Screw | K60X22 | 3 | 11617533331 | $0.75 | Shop at ECS Tuning | ||||
