Belt Drive Water Pump/Alternator for BMW 3 Series E46 316i (2004)

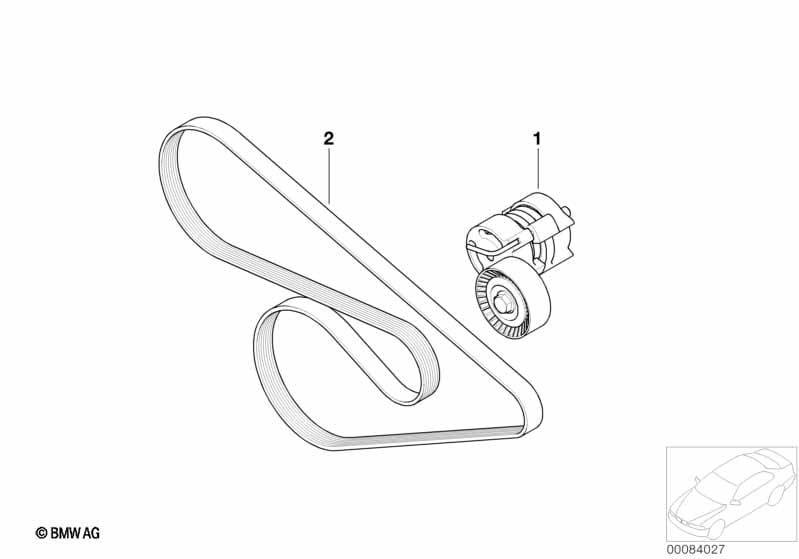

This Belt Drive Water Pump/Alternator technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 316i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Mechanical belt tensioner | 1 | 11287524267 | $101.95 | Shop at ECS Tuning | |||||
| 02 | Ribbed v-belt | 6PK X 1637 | 1 | 11287631811 | +core | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 316i Belt Drive Water Pump/Alternator?
- This technical diagram illustrates the Belt Drive Water Pump/Alternator within the Engine group for the 3 Series E46 316i produced during 2004. It provides a detailed exploded view of the components, identifying key parts such as the Mechanical belt tensioner (Part #11287524267).
- Which models use the hardware listed in this Belt Drive Water Pump/Alternator?
- The hardware and components featured in the Belt Drive Water Pump/Alternator are specific to the 3 Series E46 316i produced during 2004. These technical specifications ensure that parts like the Mechanical belt tensioner (11287524267) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Belt Drive Water Pump/Alternator assembly?
- Each item in the Belt Drive Water Pump/Alternator corresponds to the numbered list below the illustration. For the 3 Series E46 316i, you can identify the Mechanical belt tensioner by locating its position on the schematic, which then links to the official BMW part number 11287524267 for the Engine section.
