Engine acoustics for BMW 3 Series E46 318i (2005)

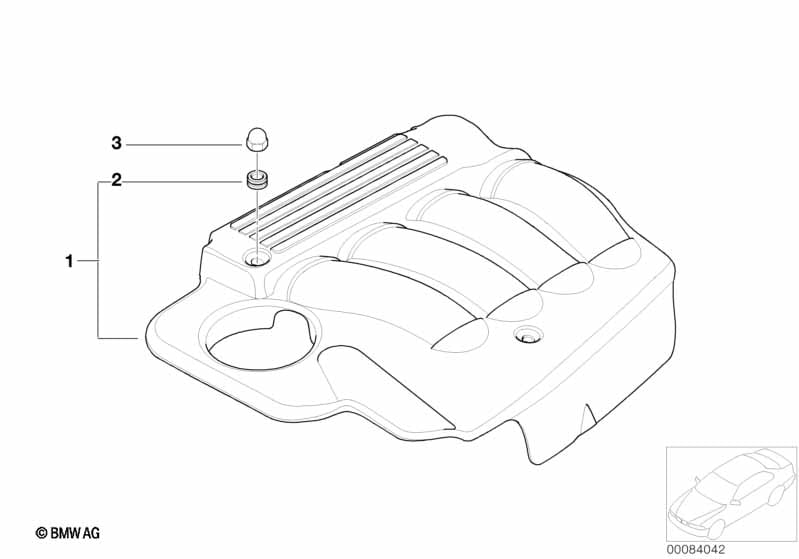

This Engine acoustics technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cover, acoustic | 1 | 11617509092 | $98.78 | ENDED | Shop at ECS Tuning | ||||
| 02 | Rubber grommet | 2 | 11617509095 | Shop at ECS Tuning | ||||||
| 03 | Cap nut | 2 | 11121725686 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 318i Engine acoustics?
- This technical diagram illustrates the Engine acoustics within the Engine group for the 3 Series E46 318i produced during 2005. It provides a detailed exploded view of the components, identifying key parts such as the Cover, acoustic (Part #11617509092).
- Which models use the hardware listed in this Engine acoustics?
- The hardware and components featured in the Engine acoustics are specific to the 3 Series E46 318i produced during 2005. These technical specifications ensure that parts like the Cover, acoustic (11617509092) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Engine acoustics assembly?
- Each item in the Engine acoustics corresponds to the numbered list below the illustration. For the 3 Series E46 318i, you can identify the Cover, acoustic by locating its position on the schematic, which then links to the official BMW part number 11617509092 for the Engine section.
