Lubricat.syst.-oil filter,heat exchanger for BMW 3 Series E46 320Cd (2006)

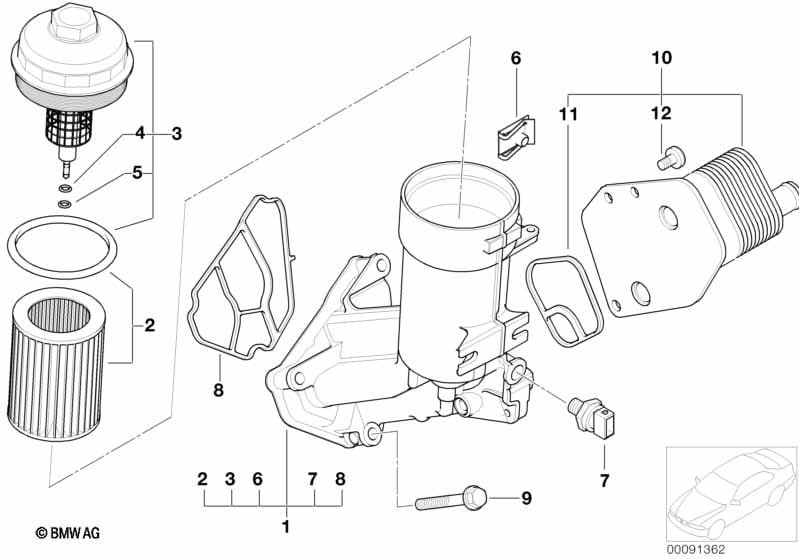

This Lubricat.syst.-oil filter,heat exchanger technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320Cd. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil filter with oil cooler connection | 3 | 11427805407 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Fillister-head screw | 1 | 11422247649 | Shop at ECS Tuning | ||||||
| 02 | Set oil-filter element | 1 | 11427787697 | $19.08 | Shop at ECS Tuning | |||||
| 03 | Oil filter cover | 1 | 11427787696 | Shop at ECS Tuning | ||||||
| 04 | O-ring | 18,64X3,53 | 1 | 11420006836 | Shop at ECS Tuning | |||||
| 05 | O-ring | 7X2,5 | 1 | 11427549573 | Shop at ECS Tuning | |||||
| 06 | Clip nut | M6-ZNS3 | 2 | 11427789289 | $1.07 | Shop at ECS Tuning | ||||
| 07 | Oil pressure switch | M12X1,5 | 1 | 12618611273 | Shop at ECS Tuning | |||||
| 08 | Profile-gasket | 1 | 11427787695 | $14.69 | Shop at ECS Tuning | |||||
| 09 | Hex bolt with washer | M8X45-8.8-ZNS3 | 3 | 07119903931 | $0.71 | Shop at ECS Tuning | ||||
| 10 | Heat exchanger | 1 | 11427787698 | Shop at ECS Tuning | ||||||
| 11 | Profile-gasket | 1 | 11427787699 | Shop at ECS Tuning | ||||||
| 12 | Fillister-head screw | 3 | 11422247649 | Shop at ECS Tuning | ||||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 320Cd Lubricat.syst.-oil filter,heat exchanger?
- This technical diagram illustrates the Lubricat.syst.-oil filter,heat exchanger within the Engine group for the 3 Series E46 320Cd produced during 2006. It provides a detailed exploded view of the components, identifying key parts such as the Oil filter with oil cooler connection (Part #11427805407).
- Which models use the hardware listed in this Lubricat.syst.-oil filter,heat exchanger?
- The hardware and components featured in the Lubricat.syst.-oil filter,heat exchanger are specific to the 3 Series E46 320Cd produced during 2006. These technical specifications ensure that parts like the Oil filter with oil cooler connection (11427805407) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Lubricat.syst.-oil filter,heat exchanger assembly?
- Each item in the Lubricat.syst.-oil filter,heat exchanger corresponds to the numbered list below the illustration. For the 3 Series E46 320Cd, you can identify the Oil filter with oil cooler connection by locating its position on the schematic, which then links to the official BMW part number 11427805407 for the Engine section.
