Distributor flange for BMW 3 Series E21 320i (1977)

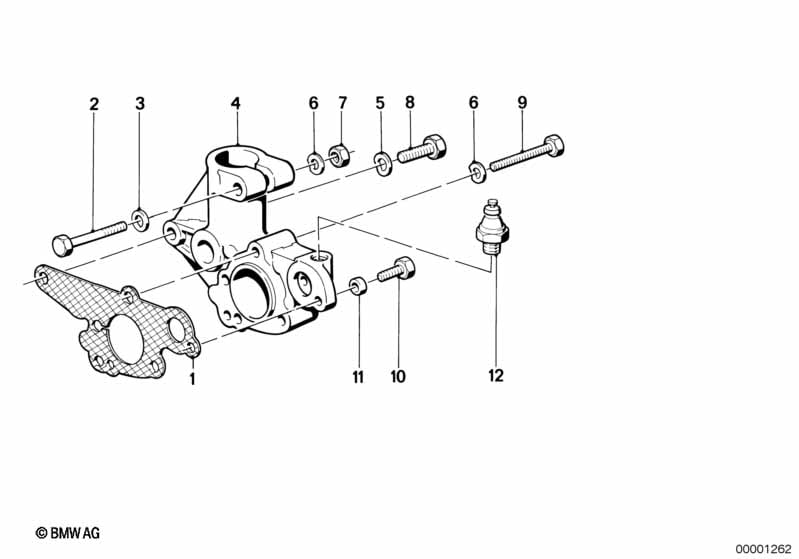

This Distributor flange technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Gasket Asbestos Free | 1 | 12111734032 | $1.67 | Shop at ECS Tuning | |||||
| 02 | Hex bolt | M6X45 8.8 ZNS3 | 1 | 07119902976 | $0.45 | Shop at ECS Tuning | ||||
| 03 | Washer | A6,4-ZNNIV SI | 1 | 07119904202 | Shop at ECS Tuning | |||||
| 04 | Distributor flange | 1 | 12111252932 | $70.62 | Shop at ECS Tuning | |||||
| 05 | Wave washer | 8,4X15-ZNS3 | 1 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 06 | Spring washer Black | B6-ZN | 4 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 06 | Washer | 5.3-140 HV-ZNS | 4 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 06 | Wave washer | B6-ZNS3 | 4 | 07119904496 | $1.78 | ENDED | Shop at ECS Tuning | |||
| 07 | Hex nut | M6-8-ZNNIV SI | 1 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 08 | Hex bolt | M8X30-ZN | 1 | 07119913662 | $0.22 | Shop at ECS Tuning | ||||
| 08 | Hex bolt | M8X30 | 1 | 07119913664 | $0.47 | Shop at ECS Tuning | ||||
| 09 | Hex bolt | M6X50 8.8 ZNS3 | 3 | 07119902993 | $0.59 | Shop at ECS Tuning | ||||
| 10 | Hex bolt | M6X20-8.8-ZNS | 1 | 07119913016 | $0.60 | ENDED | Shop at ECS Tuning | |||
| 11 | Washer-gasket | ZÜNDVERTEILER | 1 | 12110002735 | $1.71 | ENDED | Shop at ECS Tuning | |||
| 12 | Oil pressure switch | M12X1.5 | 1 | 61311243414 | $13.31 | +core | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 320i Distributor flange?
- This technical diagram illustrates the Distributor flange within the Engine electrical system group for the 3 Series E21 320i produced during 1977. It provides a detailed exploded view of the components, identifying key parts such as the Gasket Asbestos Free (Part #12111734032).
- Which models use the hardware listed in this Distributor flange?
- The hardware and components featured in the Distributor flange are specific to the 3 Series E21 320i produced during 1977. These technical specifications ensure that parts like the Gasket Asbestos Free (12111734032) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Distributor flange assembly?
- Each item in the Distributor flange corresponds to the numbered list below the illustration. For the 3 Series E21 320i, you can identify the Gasket Asbestos Free by locating its position on the schematic, which then links to the official BMW part number 12111734032 for the Engine electrical system section.
