Distributor-single parts for BMW 3 Series E21 320i (1977)

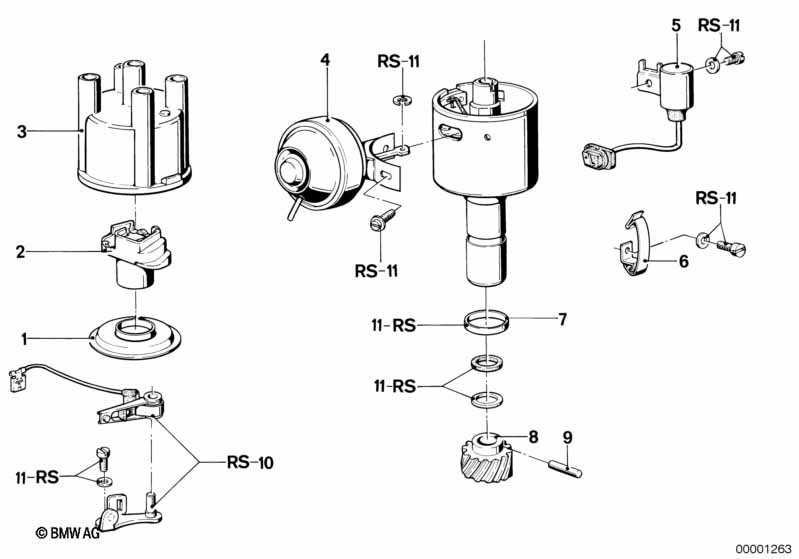

This Distributor-single parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Typ Nr.0 231 181 017 = 12 11 1 360 692 Typ Nr.0 231 181 016 = 12 11 1 360 693 Typ Nr.0 231 168 017 = 12 11 1 360 251 Typ Nr.0 231 181 022 = 12 11 1 362 972 |
|||||||||
| 01 | Kit dust cap | 1 | 12111357227 | $3.60 | Shop at ECS Tuning | |||||
| 02 | Rotor | 5000-OHM | 1 | 12111362221 | $26.90 | ENDED | Shop at ECS Tuning | |||
| 03 | Distributor cap | 1 | 12111363423 | $16.47 | Shop at ECS Tuning | |||||
| 04 | Vacuum regulator | 1 | 12111361764 | ENDED | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Distributor | X | 12111360251 | ENDED | Shop at ECS Tuning | |||||
| 04 | Vacuum regulator | 1 | 12111361037 | $99.88 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Distributor | X | 12111360692 | $507.78 | ENDED | Shop at ECS Tuning | ||||
| -- | Distributor | X | 12111360693 | $362.17 | ENDED | Shop at ECS Tuning | ||||
| -- | Distributor | X | 12111362972 | ENDED | Shop at ECS Tuning | |||||
| 05 | Condenser | 1 | 12111267413 | $21.84 | ENDED | Shop at ECS Tuning | ||||
| 06 | Clip | 1 | 12111360082 | $2.05 | Shop at ECS Tuning | |||||
| 06 | Clip | 1 | 12111362120 | $0.45 | Shop at ECS Tuning | |||||
| 07 | O-ring | 1 | 12118530508 | $1.67 | Shop at ECS Tuning | |||||
| 08 | Helical gear wheel | 1 | 12118630126 | $69.06 | ENDED | Shop at ECS Tuning | ||||
| 09 | Cone grooved pin | 4X20 | 1 | 07119943082 | $4.63 | ENDED | Shop at ECS Tuning | |||
| 10 | Repair kit contact breaker | 1 | 12111271687 | $7.80 | ENDED | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Distributor | X | 12111360251 | ENDED | Shop at ECS Tuning | |||||
| 10 | Repair kit contact breaker | 1 | 12111267393 | $9.18 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Distributor | X | 12111360692 | $507.78 | ENDED | Shop at ECS Tuning | ||||
| -- | Distributor | X | 12111360693 | $362.17 | ENDED | Shop at ECS Tuning | ||||
| -- | Distributor | X | 12111362972 | ENDED | Shop at ECS Tuning | |||||
| 11 | Repair kit distributor parts | 1 | 12111355629 | $13.60 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
