Distributor-single parts for BMW 3 Series E21 320 (1982)

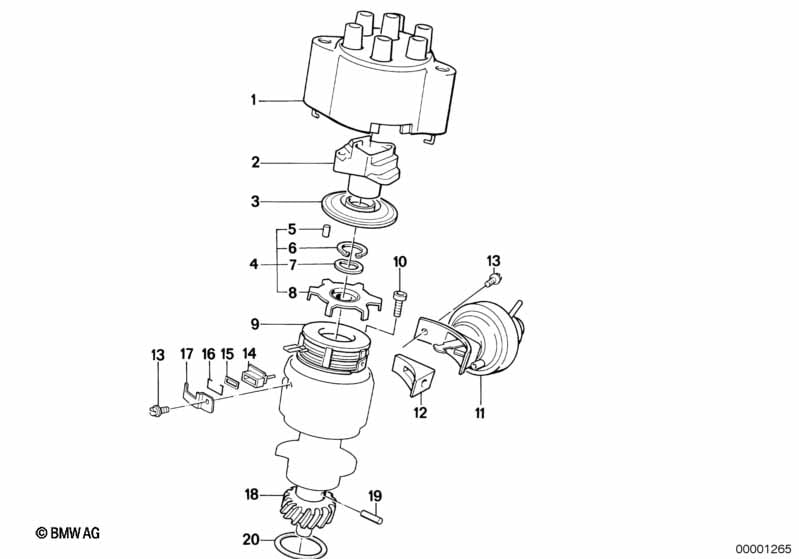

This Distributor-single parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Typ Nr.0 237 302 011 = 12 11 1 268 380 Typ Nr.0 237 302 023 = 12 11 1 274 682 Typ Nr.0 237 302 006 = 12 11 1 266 723 Typ Nr.0 237 302 024 = 12 11 1 274 683 |
|||||||||
| 01 | Distributor cap | 1 | 12111289471 | Shop at ECS Tuning | ||||||
| 02 | Rotor | 1000-OHM | 1 | 12111286111 | $28.87 | Shop at ECS Tuning | ||||
| 03 | Kit dust cap | 1 | 12111355632 | $3.25 | ENDED | Shop at ECS Tuning | ||||
| 04 | Impulse sending wheel | 1 | 12111277535 | $46.80 | Shop at ECS Tuning | |||||
| 05 | Dowel pin | 1 | 12111269267 | $2.73 | ENDED | Shop at ECS Tuning | ||||
| 06 | Lock Ring | 2 | 12111361591 | $0.68 | ENDED | Shop at ECS Tuning | ||||
| 07 | Diaphragm spring | 1 | 12111361592 | $0.84 | ENDED | Shop at ECS Tuning | ||||
| 08 | Impulse sending wheel | 1 | 12111277535 | $46.80 | Shop at ECS Tuning | |||||
| 08 | Impulse sending wheel | 1 | 12111361593 | ENDED | Shop at ECS Tuning | |||||
| 09 | Pulse generator | 1000-OHM | 1 | 12111277536 | $201.87 | ENDED | Shop at ECS Tuning | |||
| 10 | Fillister-head screw | 3 | 12111706435 | $0.62 | ENDED | Shop at ECS Tuning | ||||
| 11 | Vacumm box | 1 | 12111269271 | $78.34 | ENDED | Shop at ECS Tuning | ||||
| 12 | Holder | 1 | 12111269269 | $1.69 | ENDED | Shop at ECS Tuning | ||||
| 13 | Screw | M4X6 | 5 | 12111361964 | $1.17 | Shop at ECS Tuning | ||||
| 14 | Bush | 1 | 12111269270 | $18.71 | ENDED | Shop at ECS Tuning | ||||
| 15 | Gasket | 1 | 12111269268 | $1.84 | ENDED | Shop at ECS Tuning | ||||
| 16 | Clip | 1 | 12111268386 | $0.84 | ENDED | Shop at ECS Tuning | ||||
| 17 | Holder | 1 | 12111269266 | $0.86 | ENDED | Shop at ECS Tuning | ||||
| 18 | Gear wheel | B | 1 | 12111711310 | $77.00 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Intermediate shaft | B | 1 | 11351716095 | $145.96 | Shop at ECS Tuning | ||||
| 19 | Pin | 1 | 12111269328 | $0.18 | ENDED | Shop at ECS Tuning | ||||
| 20 | Gasket ring | 1 | 12111363190 | $1.59 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
