Distributor-single parts for BMW 3 Series E30 323i (1986)

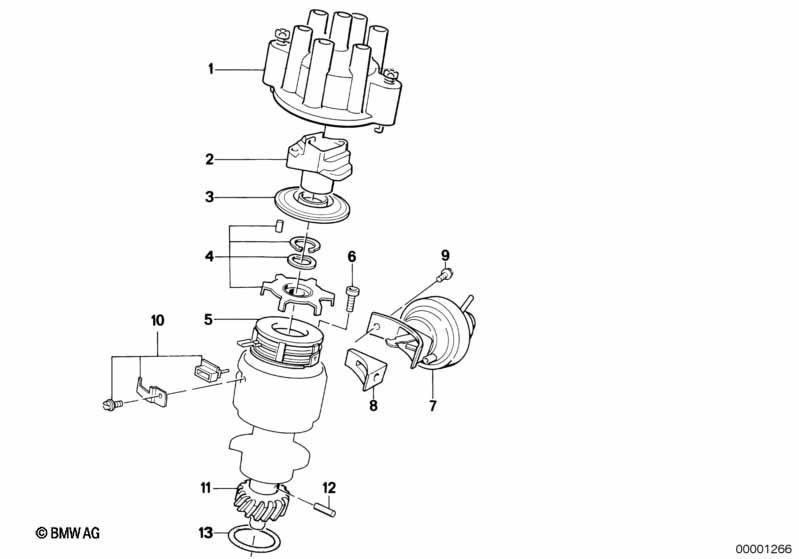

This Distributor-single parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Typ Nr.0 237 302 037 = 12 11 1 286 036 Typ Nr.0 237 302 038 = 12 11 1 286 037 Typ Nr.0 237 302 039 = 12 11 1 286 740 Typ Nr.0 237 302 040 = 12 11 1 286 743 Typ Nr. 0 237 304 024/032 = 12 11 1 706 180 - 12 11 1 706 458 Typ Nr.0 237 304 025/033 = 12 11 1 706 182 - 12 11 1 706 459 Typ Nr. 0 237 304 026/034 = 12 11 1 706 181 - 12 11 1 706 460 C H, S, Tropen Typ Nr. 0 237 304 027/035 = 12 11 1 706 183 - 12 11 1 706 462 AUS, CH, S Typ Nr.0 237 304 031/036 = 12 11 1 706 184 - 12 11 1 706 461 CH, S, Tropen Typ Nr. 0 237 302 035 = 12 11 1 284 450 Tropen, AUS, CH, S Typ Nr. 0 237 302 042 = 12 11 1 286 120 CH, S, Tropen |
|||||||||
| 01 | Distributor cap | 1 | 12111289471 | Shop at ECS Tuning | ||||||
| 02 | Rotor | 1000-OHM | 1 | 12111286111 | $28.87 | Shop at ECS Tuning | ||||
| 02 | Rotor | 1000-OHM | 1 | 12111707263 | $16.58 | Shop at ECS Tuning | ||||
| 03 | Kit dust cap | 1 | 12111355632 | $3.25 | ENDED | Shop at ECS Tuning | ||||
| 04 | Impulse sending wheel | 1 | 12111286131 | $13.37 | ENDED | Shop at ECS Tuning | ||||
| 05 | Pulse generator | 1 | 12111706146 | $119.40 | Shop at ECS Tuning | |||||
| 06 | Fillister-head screw | 3 | 12111706435 | $0.62 | ENDED | Shop at ECS Tuning | ||||
| 07 | Vacumm box | 1 | 12111706147 | $98.10 | ENDED | Shop at ECS Tuning | ||||
| 09 | Distributor | 1 | 12111286740 | $638.91 | ENDED | Shop at ECS Tuning | ||||
| 09 | Distributor | 1 | 12111286743 | $638.91 | ENDED | Shop at ECS Tuning | ||||
| 09 | Screw | M4X6 | 5 | 12111361964 | $1.17 | Shop at ECS Tuning | ||||
| 10 | Set mounting parts | 1 | 12111720553 | ENDED | Shop at ECS Tuning | |||||
