Ignition coil for BMW 6 Series E24 635CSi (1982)

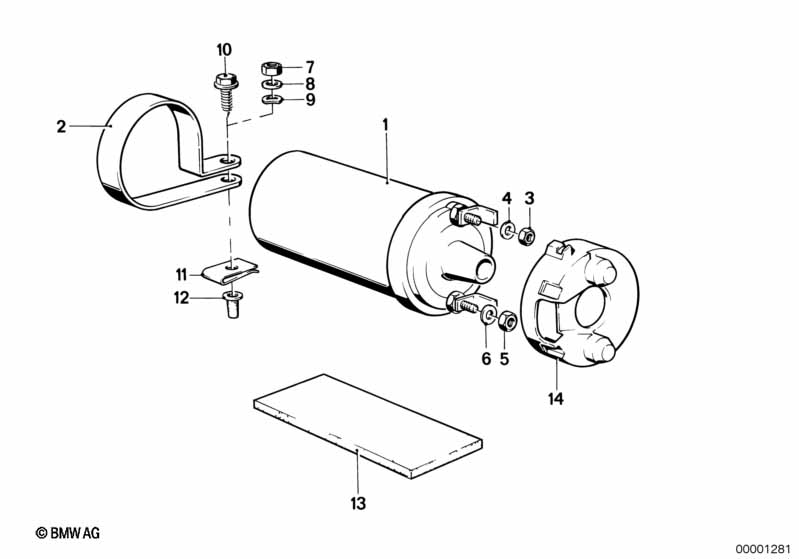

This Ignition coil technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 635CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Ignition coil | 1 | 09/1980 | 01/1984 | 12131269279 | $101.25 | Shop at ECS Tuning | |||
| 02 | Clamp | 1 | 01/1984 | 12131358763 | $1.83 | ENDED | Shop at ECS Tuning | |||
| 03 | Hex nut | M5-8-ZNNIV SI | 1 | 07119905729 | Shop at ECS Tuning | |||||
| 04 | Washer | 10X5,3X1-200 HV | 1 | 07119904206 | Shop at ECS Tuning | |||||
| 04 | Washer | 5.3-140 HV-ZNS | 1 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 05 | Hex nut | M6-8-ZNNIV SI | 1 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 06 | Washer | A6,4-ZNNIV SI | 1 | 07119904202 | Shop at ECS Tuning | |||||
| 07 | Hex nut | M6-8-ZNNIV SI | 1 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 08 | Washer | A6,4-ZNNIV SI | 1 | 07119904202 | Shop at ECS Tuning | |||||
| 09 | Spring washer Black | B6-ZN | 1 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 09 | Washer | 5.3-140 HV-ZNS | 1 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 09 | Wave washer | B6-ZNS3 | 1 | 07119904496 | $1.78 | ENDED | Shop at ECS Tuning | |||
| 10 | Hexagon sheet-metal bolt | ST6,3X16-R-U2-Z | 1 | 07119905017 | $0.38 | Shop at ECS Tuning | ||||
| 10 | Hex head screw | ST6,3X25-C-Z2 | 1 | 07119916973 | $0.58 | ENDED | Shop at ECS Tuning | |||
| 11 | Body nut | ST6,3-1-ZNS3 | 1 | 07129904231 | Shop at ECS Tuning | |||||
| 12 | Protective plug | 1 | 17114670114 | $0.26 | Shop at ECS Tuning |
