Ignition wiring for BMW 5 Series E12 518 (1978)

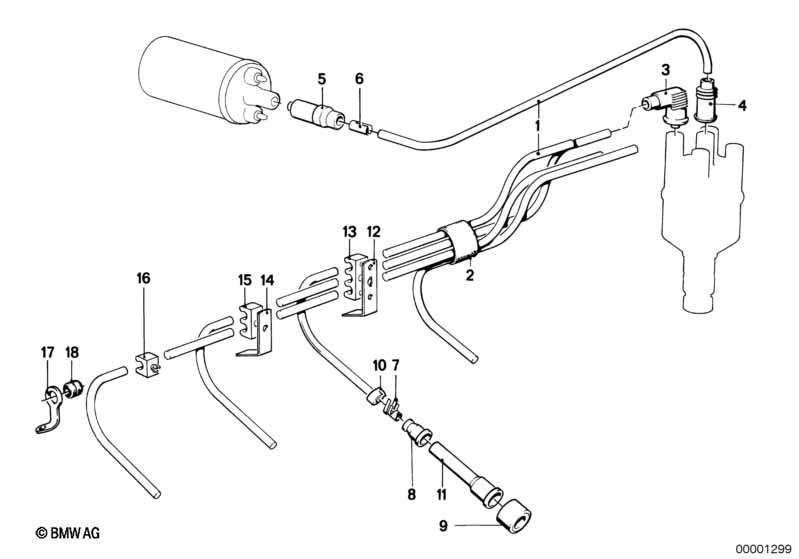

This Ignition wiring technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 518. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1978.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Ignition wire | X | 07/1975 | 12121705675 | $11.91 | +core | Shop at ECS Tuning | |||
| 02 | Insulating hose | B18X1 | X | 07/1975 | 07119975349 | $1.10 | Shop at ECS Tuning | |||
| 03 | Suppressing socket | 4 | 07/1975 | 12121289840 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Circular connector | 4 | 07/1975 | 12121705656 | $1.73 | +core | Shop at ECS Tuning | |||
| 03 | Suppressing socket | 4 | 07/1975 | 12121289844 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Circular connector | 4 | 07/1975 | 12121705656 | $1.73 | +core | Shop at ECS Tuning | |||
| 04 | Suppressing socket | 1 | 07/1975 | 12121289840 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Circular connector | 1 | 07/1975 | 12121705656 | $1.73 | +core | Shop at ECS Tuning | |||
| 04 | Suppressing socket | 1 | 07/1975 | 12121289844 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Circular connector | 1 | 07/1975 | 12121705656 | $1.73 | +core | Shop at ECS Tuning | |||
| 05 | Protection cap | 1 | 07/1975 | 12118536129 | $6.07 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 05 | Suppressing socket | 1 | 07/1975 | 12121279568 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 05 | Protection cap | 1 | 07/1975 | 12121360397 | $2.29 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Circular connector | 1 | 07/1975 | 12121363327 | $0.73 | Shop at ECS Tuning | ||||
| 06 | Cable sleeve | 1 | 07/1975 | 12128536120 | $6.76 | ENDED | Shop at ECS Tuning | |||
| 07 | Circular connector | X | 07/1975 | 12121363327 | $0.73 | Shop at ECS Tuning | ||||
| 07 | Circular connector | X | 07/1975 | 12121705656 | $1.73 | +core | Shop at ECS Tuning | |||
| 08 | Protection cap | 4 | 07/1975 | 12121276161 | $1.10 | Shop at ECS Tuning | ||||
| 09 | Protection cap | 4 | 07/1975 | 12121266683 | $2.20 | Shop at ECS Tuning | ||||
| 10 | Identification ring | ZYL.1 | 2 | 07/1975 | 12121706186 | $0.60 | Shop at ECS Tuning | |||
| 10 | Identification ring | ZYL.2 | 2 | 07/1975 | 12121706187 | $0.60 | Shop at ECS Tuning | |||
| 10 | Identification ring | ZYL.3 | 2 | 07/1975 | 12121706188 | $0.60 | Shop at ECS Tuning | |||
| 10 | Identification ring | ZYL.4 | 2 | 07/1975 | 12121706189 | $0.60 | Shop at ECS Tuning | |||
| 11 | Spark plug socket | 1000-OHM | 4 | 07/1975 | 09/1980 | 12121356004 | $7.84 | ENDED | Shop at ECS Tuning | |
| 11 | Spark plug socket | 1000-OHM | 4 | 07/1975 | 09/1980 | 12121266699 | $7.13 | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| -- | Circular connector | 4 | 07/1975 | 09/1980 | 12121363327 | $0.73 | Shop at ECS Tuning | |||
| 12 | Holder | 1 | 07/1975 | 12121357937 | $3.38 | ENDED | Shop at ECS Tuning | |||
| 13 | Holder | 1 | 07/1975 | 12121353672 | $2.54 | Shop at ECS Tuning | ||||
| 14 | Holder | 1 | 07/1975 | 12121360790 | $2.02 | ENDED | Shop at ECS Tuning | |||
| 15 | Holder | 1 | 07/1975 | 13531254041 | $0.60 | ENDED | Shop at ECS Tuning | |||
| 16 | Holder | 1 | 07/1975 | 12121360791 | $0.61 | ENDED | Shop at ECS Tuning | |||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
