Distributor for BMW 3 Series E30 320i (1991)

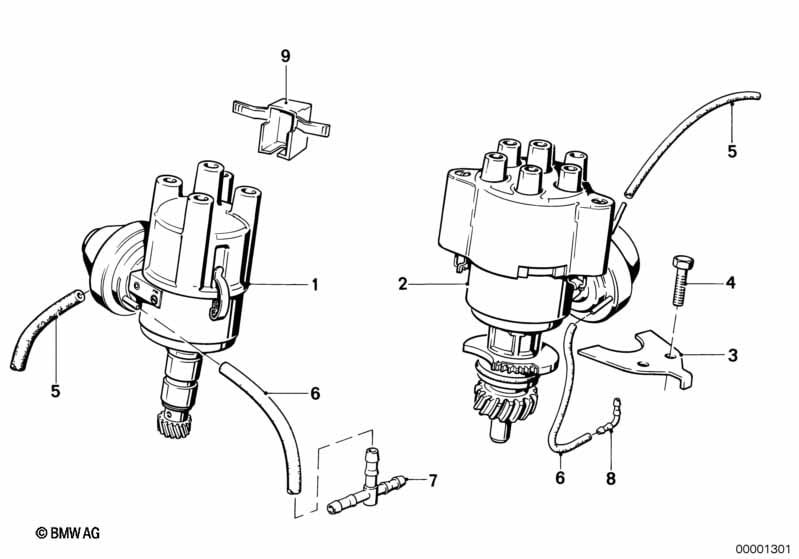

This Distributor technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Distributor | 1 | 09/1984 | 12111706458 | $666.81 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Low compression engine |
=Yes |
|||||||||
| 02 | Distributor | 1 | 09/1984 | 12111706461 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with without catalytic converter |
S199A=Yes |
|||||||||
| 02 | Distributor | 1 | 09/1984 | 12111706458 | $666.81 | ENDED | Shop at ECS Tuning | |||
| For vehicles with without catalytic converter and Low compression engine |
S199A=Yes =Yes |
|||||||||
| 02 | Distributor | 1 | 09/1984 | 12111706461 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with National version Switzerland and Sweden version |
L804A=Yes =Yes |
|||||||||
| 02 | Distributor | 1 | 09/1984 | 12111706461 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with National version Switzerland and without catalytic converter and Sweden version |
L804A=Yes S199A=Yes =Yes |
|||||||||
| 02 | Distributor | 1 | 09/1984 | 12111706461 | ENDED | Shop at ECS Tuning | ||||
| 03 | Holder | 1 | 12121364199 | $11.16 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with without catalytic converter |
S199A=Yes |
|||||||||
| 03 | Holder | 1 | 12121364199 | $11.16 | ENDED | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M8X28-ZN | 1 | 07119913659 | $0.47 | ENDED | Shop at ECS Tuning | |||
| For vehicles with without catalytic converter |
S199A=Yes |
|||||||||
| 04 | Hex bolt | M8X28-ZN | 1 | 07119913659 | $0.47 | ENDED | Shop at ECS Tuning | |||
| 05 | Vacuum hose black | 3,5X1,8 | X | 11727545323 | $14.82 | Shop at ECS Tuning | ||||
| For vehicles with without catalytic converter |
S199A=Yes |
|||||||||
| 05 | Vacuum hose black | 3,5X1,8 | X | 11727545323 | $14.82 | Shop at ECS Tuning | ||||
| 06 | Vacuum hose white | 3,3X1,8 | X | 11747797177 | $17.14 | Shop at ECS Tuning | ||||
| For vehicles with without catalytic converter |
S199A=Yes |
|||||||||
| 06 | Vacuum hose white | 3,3X1,8 | X | 11747797177 | $17.14 | Shop at ECS Tuning | ||||
| 08 | Support | 1 | 22116759728 | $0.79 | Shop at ECS Tuning | |||||
| For vehicles with without catalytic converter |
S199A=Yes |
|||||||||
| 08 | Support | 1 | 22116759728 | $0.79 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
