Control unit transitorized ignition for BMW 5 Series E28 525e (1987)

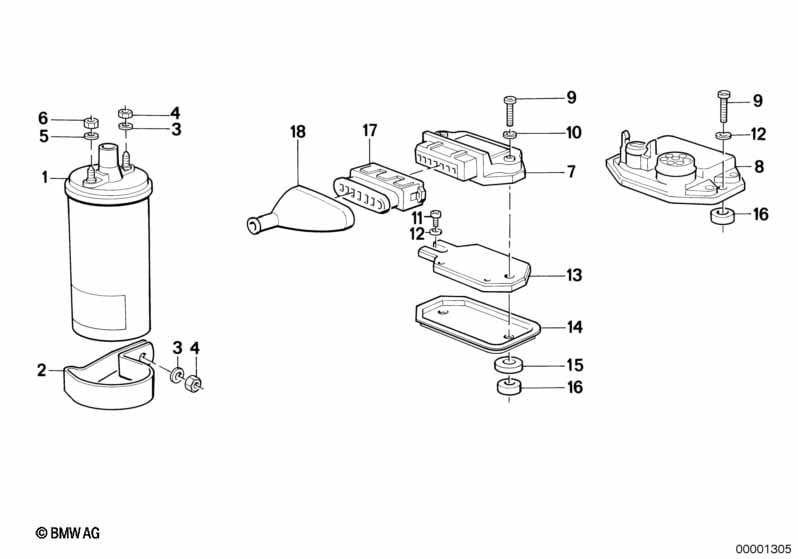

This Control unit transitorized ignition technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 525e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Ignition coil | 1 | 12131286087 | $114.46 | Shop at ECS Tuning | |||||
| 02 | Clamp | 1 | 12131286080 | $5.08 | Shop at ECS Tuning | |||||
| 03 | Washer | A6,4-ZNNIV SI | 1 | 07119904202 | Shop at ECS Tuning | |||||
| 04 | Hex nut | M6-8-ZNNIV SI | 1 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 05 | Washer | 10X5,3X1-200 HV | 1 | 07119904206 | Shop at ECS Tuning | |||||
| 05 | Washer | 5.3-140 HV-ZNS | 1 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 06 | Hex nut | M8-8-ZNNIV SI | 1 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 06 | Hex nut | M5-8-ZNNIV SI | 1 | 07119905729 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E28 525e Control unit transitorized ignition?
- This technical diagram illustrates the Control unit transitorized ignition within the Engine electrical system group for the 5 Series E28 525e produced during 1987. It provides a detailed exploded view of the components, identifying key parts such as the Ignition coil (Part #12131286087).
- Which models use the hardware listed in this Control unit transitorized ignition?
- The hardware and components featured in the Control unit transitorized ignition are specific to the 5 Series E28 525e produced during 1987. These technical specifications ensure that parts like the Ignition coil (12131286087) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Control unit transitorized ignition assembly?
- Each item in the Control unit transitorized ignition corresponds to the numbered list below the illustration. For the 5 Series E28 525e, you can identify the Ignition coil by locating its position on the schematic, which then links to the official BMW part number 12131286087 for the Engine electrical system section.
