Pulse generator for BMW 3 Series E30 325ix (1991)

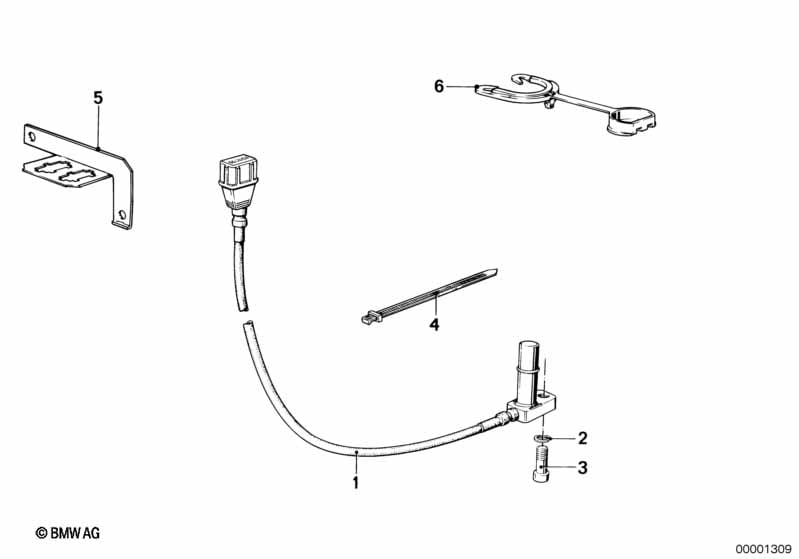

This Pulse generator technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325ix. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pulse generator | 1 | 12141720856 | Shop at ECS Tuning | ||||||
| 02 | Wave washer | B6 | 1 | 07119932072 | $0.09 | ENDED | Shop at ECS Tuning | |||
| 02 | Spring washer Black | B6-ZN | 1 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 02 | Washer | 5.3-140 HV-ZNS | 1 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 02 | Wave washer | B6-ZNS3 | 1 | 07119904496 | $1.78 | ENDED | Shop at ECS Tuning | |||
| 03 | ISA screw | M6X12-8.8-ZNNIV | 1 | 07129905867 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 325ix Pulse generator?
- This technical diagram illustrates the Pulse generator within the Engine electrical system group for the 3 Series E30 325ix produced during 1991. It provides a detailed exploded view of the components, identifying key parts such as the Pulse generator (Part #12141720856).
- Which models use the hardware listed in this Pulse generator?
- The hardware and components featured in the Pulse generator are specific to the 3 Series E30 325ix produced during 1991. These technical specifications ensure that parts like the Pulse generator (12141720856) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Pulse generator assembly?
- Each item in the Pulse generator corresponds to the numbered list below the illustration. For the 3 Series E30 325ix, you can identify the Pulse generator by locating its position on the schematic, which then links to the official BMW part number 12141720856 for the Engine electrical system section.
