Control unit transitorized ignition for BMW 7 Series E23 733i (1982)

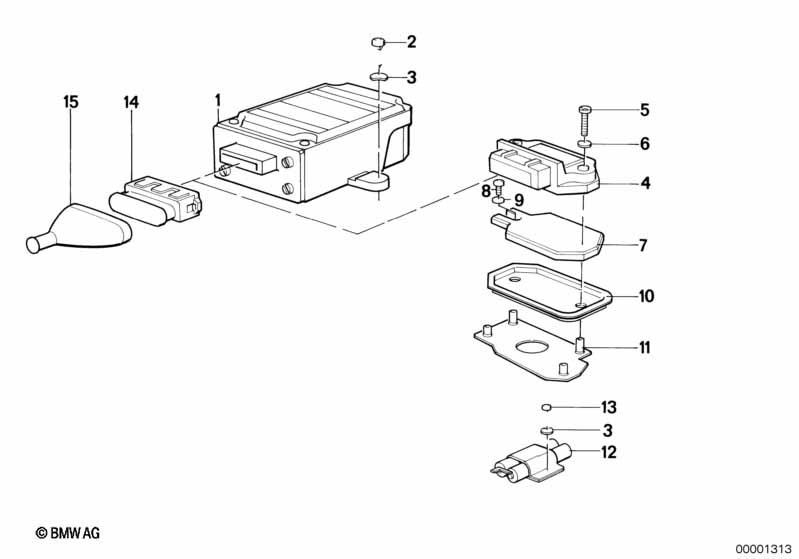

This Control unit transitorized ignition technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 733i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Fillister head self-tapping screw | ST4,8X16 Z2 | 2 | 07119907789 | $0.13 | ENDED | Shop at ECS Tuning | |||
| 03 | Wave washer | B5 | 5 | 07119932098 | $0.38 | Shop at ECS Tuning | ||||
| 13 | Fillister head self-tapping screw | ST4,8X13 | 1 | 07119907786 | $0.11 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 733i Control unit transitorized ignition?
- This technical diagram illustrates the Control unit transitorized ignition within the Engine electrical system group for the 7 Series E23 733i produced during 1982. It provides a detailed exploded view of the components, identifying key parts such as the Fillister head self-tapping screw (Part #07119907789).
- Which models use the hardware listed in this Control unit transitorized ignition?
- The hardware and components featured in the Control unit transitorized ignition are specific to the 7 Series E23 733i produced during 1982. These technical specifications ensure that parts like the Fillister head self-tapping screw (07119907789) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Control unit transitorized ignition assembly?
- Each item in the Control unit transitorized ignition corresponds to the numbered list below the illustration. For the 7 Series E23 733i, you can identify the Fillister head self-tapping screw by locating its position on the schematic, which then links to the official BMW part number 07119907789 for the Engine electrical system section.
