Ignition wiring/spark plug/distrib.c.. for BMW 6 Series E24 630CSi (1977)

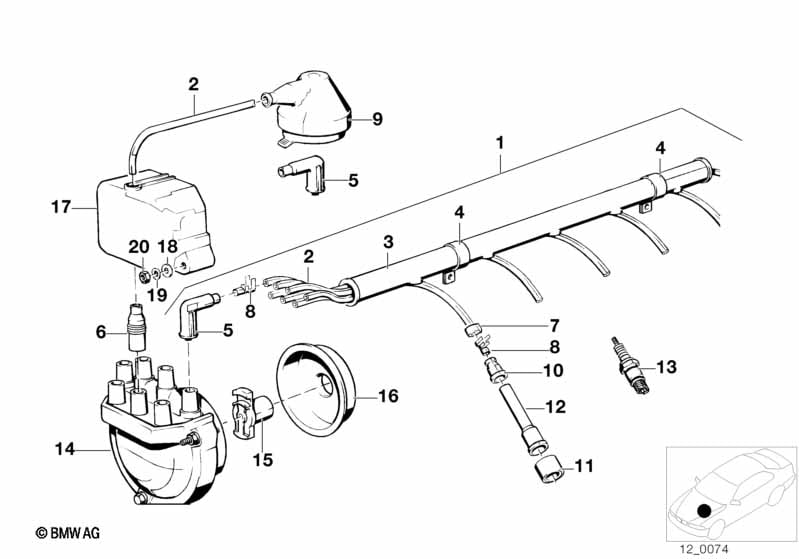

This Ignition wiring/spark plug/distrib.c.. technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 630CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Ignition wiring | 1 | 09/1981 | 12121705716 | $252.08 | ENDED | Shop at ECS Tuning | |||
| 03 | Ignition wiring tube | 1 | 09/1981 | 12121359367 | ENDED | Shop at ECS Tuning | ||||
| 03 | Ignition wiring tube | 1 | 01/1984 | 12121289413 | $7.80 | ENDED | Shop at ECS Tuning | |||
| 04 | Pipe clamp | 2 | 01/1984 | 12121350635 | $1.61 | ENDED | Shop at ECS Tuning | |||
| 05 | Suppressing socket | 7 | 09/1981 | 12121289844 | Shop at ECS Tuning | |||||
| 06 | Suppressing socket | 1 | 09/1981 | 12121289844 | Shop at ECS Tuning | |||||
| 07 | Identification ring | ZYL.1 | 2 | 01/1984 | 12121706186 | $0.60 | Shop at ECS Tuning | |||
| 07 | Identification ring | ZYL.2 | 2 | 01/1984 | 12121706187 | $0.60 | Shop at ECS Tuning | |||
| 07 | Identification ring | ZYL.3 | 2 | 01/1984 | 12121706188 | $0.60 | Shop at ECS Tuning | |||
| 07 | Identification ring | ZYL.4 | 2 | 01/1984 | 12121706189 | $0.60 | Shop at ECS Tuning | |||
| 07 | Identification ring | ZYL.5 | 2 | 01/1984 | 12121706190 | $0.60 | Shop at ECS Tuning | |||
| 07 | Identification ring | ZYL.6 | 2 | 01/1984 | 12121706191 | $0.60 | ENDED | Shop at ECS Tuning | ||
| 08 | Circular connector | X | 01/1984 | 12121363327 | $0.73 | Shop at ECS Tuning | ||||
| 08 | Circular connector | X | 01/1984 | 12121705656 | $1.73 | +core | Shop at ECS Tuning | |||
| 09 | Covering cap | 1 | 01/1984 | 12121273299 | $17.17 | Shop at ECS Tuning | ||||
| 10 | Protection cap | 6 | 09/1981 | 12121276161 | $1.10 | Shop at ECS Tuning | ||||
| 11 | Protection cap | 6 | 09/1981 | 12121266683 | $2.20 | Shop at ECS Tuning | ||||
| 12 | Spark plug socket | 1000-OHM | 6 | 09/1981 | 12121266699 | $7.13 | Shop at ECS Tuning | |||
| 13 | Spark plug | BOSCH W8DC | 6 | 09/1979 | 12121276283 | $8.93 | Shop at ECS Tuning |
