Distributor-single parts for BMW 7 Series E23 728i (1986)

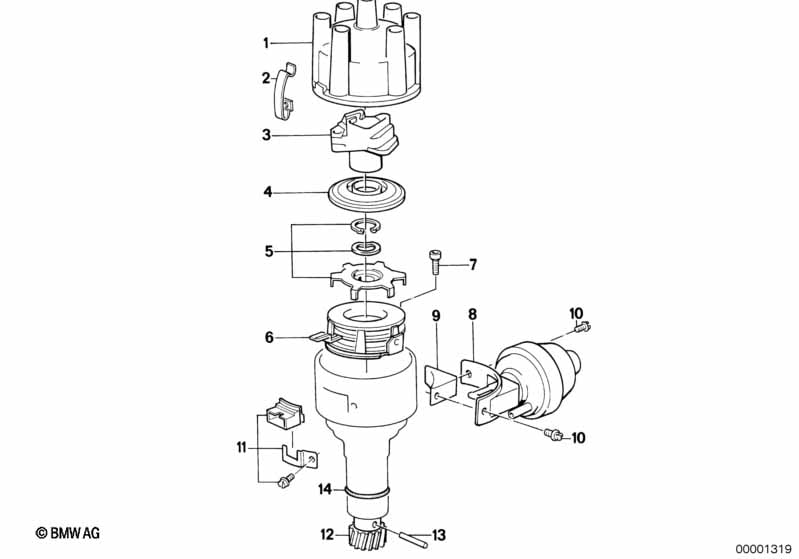

This Distributor-single parts technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Typ Nr.0 237 304 028 = 12 11 1 284 416 Typ Nr. 0 237 304 029 = 12 11 1 277 417 CH, S Typ Nr.0 237 304 030 = 12 11 1 706 415 F |
|||||||||
| 01 | Distributor cap | 1 | 12111363422 | $28.24 | ENDED | Shop at ECS Tuning | ||||
| 01 | Distributor cap | 1 | 12111363292 | Shop at ECS Tuning | ||||||
| 02 | Clip | 2 | 12111361590 | $1.75 | Shop at ECS Tuning | |||||
| 03 | Rotor | 1000-OHM | 1 | 12111707263 | $16.58 | Shop at ECS Tuning | ||||
| 04 | Kit dust cap | 1 | 12111355632 | $3.25 | ENDED | Shop at ECS Tuning | ||||
| 05 | Impulse sending wheel | 1 | 12111286131 | $13.37 | ENDED | Shop at ECS Tuning | ||||
| 06 | Pulse generator | 1000-OHM | 1 | 12111277536 | $201.87 | ENDED | Shop at ECS Tuning | |||
| 07 | Fillister-head screw | 3 | 12111706435 | $0.62 | ENDED | Shop at ECS Tuning | ||||
| 08 | Vacuum regulator | 1 | 12111286124 | $84.54 | ENDED | Shop at ECS Tuning | ||||
| 10 | Screw | M4X6 | 3 | 12111361964 | $1.17 | Shop at ECS Tuning | ||||
| 11 | Set mounting parts | 1 | 12111286130 | ENDED | Shop at ECS Tuning | |||||
| 12 | Helical gear wheel | 1 | 12118630126 | $69.06 | ENDED | Shop at ECS Tuning | ||||
| 13 | Cone grooved pin | 4X20 | 1 | 07119943082 | $4.63 | ENDED | Shop at ECS Tuning | |||
| 14 | O-ring | 1 | 12118530508 | $1.67 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
