Ignition wiring/spark plug/distrib.c.. for BMW 7 Series E23 735i (1986)

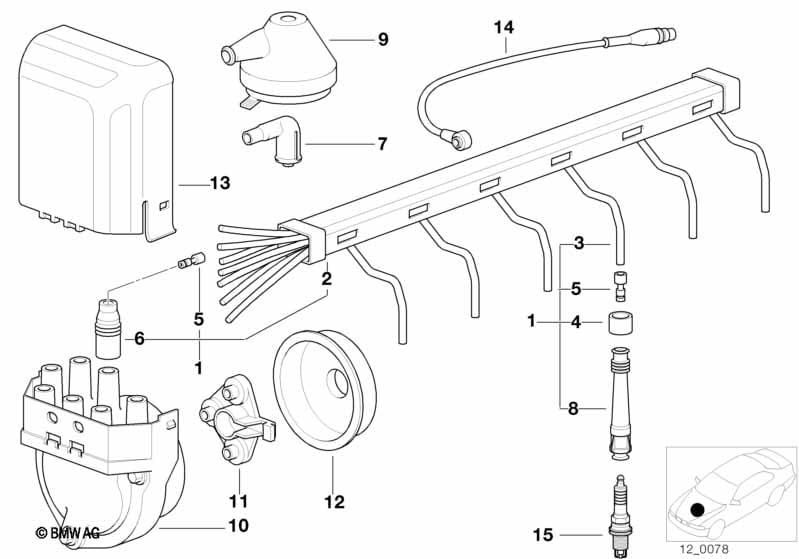

This Ignition wiring/spark plug/distrib.c.. technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Ignition wiring | 1 | 01/1984 | 12121705718 | $261.56 | ENDED | Shop at ECS Tuning | |||
| 02 | Ignition wiring tube | 1 | 01/1984 | 12121289413 | $7.80 | ENDED | Shop at ECS Tuning | |||
| 03 | Ignition wire | X | 01/1984 | 12121705675 | $11.91 | +core | Shop at ECS Tuning | |||
| 04 | Identification ring | ZYL.1 | 2 | 01/1984 | 12121706186 | $0.60 | Shop at ECS Tuning | |||
| 04 | Identification ring | ZYL.2 | 2 | 01/1984 | 12121706187 | $0.60 | Shop at ECS Tuning | |||
| 04 | Identification ring | ZYL.3 | 2 | 01/1984 | 12121706188 | $0.60 | Shop at ECS Tuning | |||
| 04 | Identification ring | ZYL.4 | 2 | 01/1984 | 12121706189 | $0.60 | Shop at ECS Tuning | |||
| 04 | Identification ring | ZYL.5 | 2 | 01/1984 | 12121706190 | $0.60 | Shop at ECS Tuning | |||
| 04 | Identification ring | ZYL.6 | 2 | 01/1984 | 12121706191 | $0.60 | ENDED | Shop at ECS Tuning | ||
| 05 | Circular connector | X | 01/1984 | 12121705656 | $1.73 | +core | Shop at ECS Tuning | |||
| 06 | Suppressing socket | 1000-OHM | 7 | 01/1984 | 12121289825 | $9.89 | ENDED | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| -- | Circular connector | X | 01/1984 | 12121705656 | $1.73 | +core | Shop at ECS Tuning | |||
| 07 | Suppressing socket | 1000-OHM | 1 | 01/1984 | 12121289825 | $9.89 | ENDED | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| -- | Circular connector | X | 01/1984 | 12121705656 | $1.73 | +core | Shop at ECS Tuning | |||
| 08 | Spark plug socket | 5000-OHM | 6 | 01/1984 | 12121289821 | $13.95 | ENDED | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| -- | Circular connector | X | 01/1984 | 12121705656 | $1.73 | +core | Shop at ECS Tuning | |||
| 09 | Protection cap | 1 | 01/1984 | 06/1986 | 12121284464 | $9.10 | ENDED | Shop at ECS Tuning | ||
| 10 | Distributor cap | 1 | 01/1984 | 12111725070 | $129.52 | ENDED | Shop at ECS Tuning | |||
| 11 | Rotor | 1 | 01/1984 | 12111734110 | $30.76 | ENDED | Shop at ECS Tuning | |||
| 12 | Cover | 1 | 01/1984 | 12111288167 | $25.02 | ENDED | Shop at ECS Tuning | |||
| 13 | Protection cap | 1 | 01/1984 | 12121716299 | $13.37 | Shop at ECS Tuning | ||||
| 15 | Spark plug | BOSCH WR9LS | 6 | 12121279599 | $15.23 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
