Ignition system for BMW 7 Series E23 745i (1986)

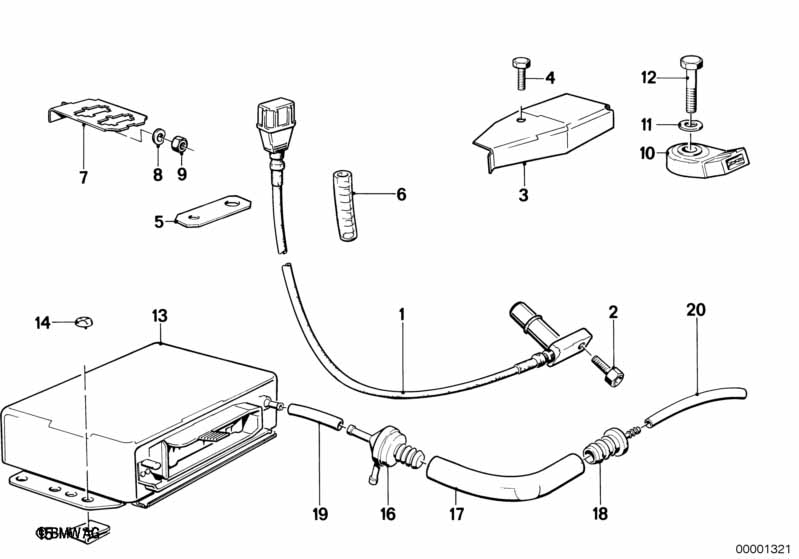

This Ignition system technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pulse generator | 610MM | 2 | 12141708619 | $109.88 | ENDED | Shop at ECS Tuning | |||
| 01 | Pulse generator | 820 MM | 2 | 12141730773 | Shop at ECS Tuning | |||||
| 02 | Stud bolt | M6 | 2 | 12141284444 | $3.43 | ENDED | Shop at ECS Tuning | |||
| 03 | Protection cap | 1 | 12141284395 | $17.33 | ENDED | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M6X8 | 2 | 07119913420 | $0.13 | ENDED | Shop at ECS Tuning | |||
| 05 | Bracket | 1 | 12141274641 | $0.98 | ENDED | Shop at ECS Tuning | ||||
| 06 | Spiral conduit | 100MM | 1 | 61131363375 | $2.66 | Shop at ECS Tuning | ||||
| 07 | Holder | 1 | 12141274645 | $0.57 | Shop at ECS Tuning | |||||
| 08 | Spring washer Black | B6-ZN | 1 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 08 | Washer | 5.3-140 HV-ZNS | 1 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 08 | Wave washer | B6-ZNS3 | 1 | 07119904496 | $1.78 | ENDED | Shop at ECS Tuning | |||
| 09 | Hex nut | M6-8-ZNNIV SI | 1 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 10 | Ping Sensor | 2 | 12141279734 | $78.20 | ENDED | Shop at ECS Tuning | ||||
| 12 | Hex bolt | M8X30-ZN | 2 | 07119913662 | $0.22 | Shop at ECS Tuning | ||||
| 12 | Hex bolt | M8X30 | 2 | 07119913664 | $0.47 | Shop at ECS Tuning | ||||
| 13 | Control unit ping regulation | 1 | 12141279733 | ENDED | Shop at ECS Tuning | |||||
| 13 | Control unit ping regulation | 1 | 12141286084 | $1083.03 | ENDED | Shop at ECS Tuning | ||||
| 14 | Plug-in nut | M5 | 2 | 46637651465 | $1.29 | Shop at ECS Tuning | ||||
| 15 | Hex head screw | ST4,8X13-ZN3 | 2 | 07119904285 | $0.38 | Shop at ECS Tuning | ||||
| 16 | non-return valve | 1 | 11651288340 | $11.05 | ENDED | Shop at ECS Tuning | ||||
| 17 | Vacuum hose | 12X19 | 1 | 34331115926 | $28.71 | +core | Shop at ECS Tuning | |||
| 18 | Reducer | 12/4 | 1 | 11651288390 | $0.45 | ENDED | Shop at ECS Tuning | |||
| 19 | Fuel hose | 6X11MM | X | 13311272750 | $11.62 | Shop at ECS Tuning | ||||
| 20 | Vacuum hose black | 3,5X1,8 | X | 11727545323 | $14.82 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 745i Ignition system?
- This technical diagram illustrates the Ignition system within the Engine electrical system group for the 7 Series E23 745i produced during 1986. It provides a detailed exploded view of the components, identifying key parts such as the Pulse generator (Part #12141708619).
- Which models use the hardware listed in this Ignition system?
- The hardware and components featured in the Ignition system are specific to the 7 Series E23 745i produced during 1986. These technical specifications ensure that parts like the Pulse generator (12141708619) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Ignition system assembly?
- Each item in the Ignition system corresponds to the numbered list below the illustration. For the 7 Series E23 745i, you can identify the Pulse generator by locating its position on the schematic, which then links to the official BMW part number 12141708619 for the Engine electrical system section.
