Distributor-single parts for BMW 3 Series E30 318i (1987)

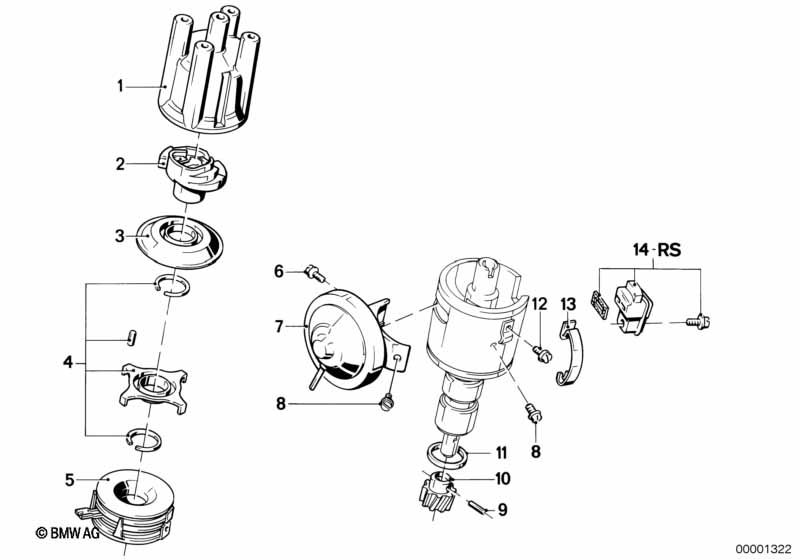

This Distributor-single parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Typ Nr. 0 237 005 010 = 12 11 1 286 076 Typ Nr. 0 237 005 011 = 12 11 1 286 629 Typ Nr. 0 237 005 012 = 12 11 1 707 364 |
|||||||||
| 01 | Distributor cap | 1 | 12111706113 | Shop at ECS Tuning | ||||||
| 02 | Rotor | 1 | 12111710736 | ENDED | Shop at ECS Tuning | |||||
| 03 | Kit dust cap | 1 | 12111357227 | $3.60 | Shop at ECS Tuning | |||||
| 04 | Impulse sending wheel | 1 | 12111288436 | $21.19 | ENDED | Shop at ECS Tuning | ||||
| 05 | Pulse generator | 1 | 12111276127 | $126.50 | ENDED | Shop at ECS Tuning | ||||
| 06 | Fillister-head screw | 1 | 12111288447 | ENDED | Shop at ECS Tuning | |||||
| 07 | Vacuum regulator | 1 | 12111705915 | $42.64 | ENDED | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Distributor | X | 12111286629 | $387.25 | Shop at ECS Tuning | |||||
| 07 | Vacuum regulator | 1 | 12111288446 | $30.12 | ENDED | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Distributor | X | 12111707364 | ENDED | Shop at ECS Tuning | |||||
| 08 | Fillister-head screw | 3 | 12111288448 | ENDED | Shop at ECS Tuning | |||||
| 10 | Helical gear wheel | 1 | 12111272154 | $46.36 | ENDED | Shop at ECS Tuning | ||||
| 11 | O-ring | 1 | 12118530508 | $1.67 | Shop at ECS Tuning | |||||
| 12 | Fillister-head screw | 2 | 12111276115 | $0.40 | ENDED | Shop at ECS Tuning | ||||
| 13 | Clip | 2 | 12111276114 | $1.93 | Shop at ECS Tuning | |||||
| 13 | Support shackle | 2 | 12119058411 | $0.80 | Shop at ECS Tuning | |||||
| 14 | Repair kit distributor parts | 1 | 12111705916 | $4.53 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
