Ignition wiring for BMW 3 Series E30 320i (1990)

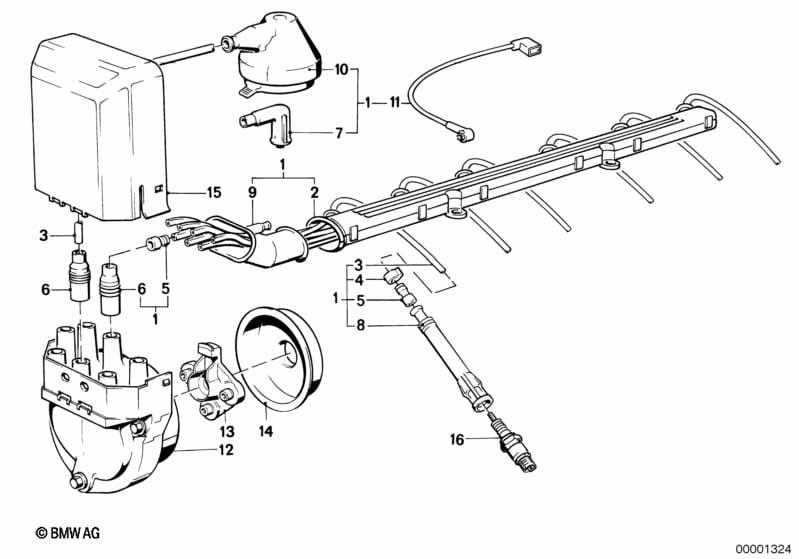

This Ignition wiring technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Ignition wiring | 1 | 09/1987 | 12121720529 | $350.15 | Shop at ECS Tuning | ||||
| 01 | Ignition harness with marten repeller | 1 | 09/1987 | 12121735217 | $337.02 | ENDED | Shop at ECS Tuning | |||
| 02 | Ignition wiring tube | 1 | 12121719889 | $11.47 | Shop at ECS Tuning | |||||
| 03 | Ignition wire | X | 12121705675 | $11.91 | +core | Shop at ECS Tuning | ||||
| 04 | Identification ring | ZYL.1 | 2 | 12121706186 | $0.60 | Shop at ECS Tuning | ||||
| 04 | Identification ring | ZYL.2 | 2 | 12121706187 | $0.60 | Shop at ECS Tuning | ||||
| 04 | Identification ring | ZYL.3 | 2 | 12121706188 | $0.60 | Shop at ECS Tuning | ||||
| 04 | Identification ring | ZYL.4 | 2 | 12121706189 | $0.60 | Shop at ECS Tuning | ||||
| 04 | Identification ring | ZYL.5 | 2 | 12121706190 | $0.60 | Shop at ECS Tuning | ||||
| 04 | Identification ring | ZYL.6 | 2 | 12121706191 | $0.60 | ENDED | Shop at ECS Tuning | |||
| 05 | Circular connector | X | 12121705656 | $1.73 | +core | Shop at ECS Tuning | ||||
| 06 | Suppressing socket | 7 | 12121289832 | Shop at ECS Tuning | ||||||
| 07 | Suppressing socket | 1 | 12121289828 | Shop at ECS Tuning | ||||||
| 08 | Spark plug socket | 6 | 12121289824 | Shop at ECS Tuning | ||||||
| 09 | Rubber grommet | 1 | 12121710584 | $3.60 | Shop at ECS Tuning | |||||
| 10 | Protection cap | 1 | 12121727606 | Shop at ECS Tuning | ||||||
| 11 | Pulse generator | 1 | 12121722570 | Shop at ECS Tuning | ||||||
| 12 | Distributor cap | 1 | 12111715905 | Shop at ECS Tuning | ||||||
| 13 | Rotor | 1 | 12111715906 | Shop at ECS Tuning | ||||||
| 14 | Cover | 1 | 12111287718 | $23.21 | Shop at ECS Tuning | |||||
| 15 | Protection cap | 1 | 12111710553 | $4.93 | Shop at ECS Tuning | |||||
| 16 | Spark plug | BOSCH W8DC | 6 | 12121276283 | $8.93 | Shop at ECS Tuning | ||||
| For vehicles with without catalytic converter |
S199A=No |
|||||||||
| 16 | Spark plug | BOSCH W8 LPR | 6 | 12121721895 | $8.38 | ENDED, SI 121089133 | Shop at ECS Tuning | |||
| 16 | Spark plug | BOSCH W8 LCR | 6 | 12129061869 | $8.38 | SI 121089133 | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
- SI = Service Information
