Fan belt for BMW 3 Series E30 M3 (1990)

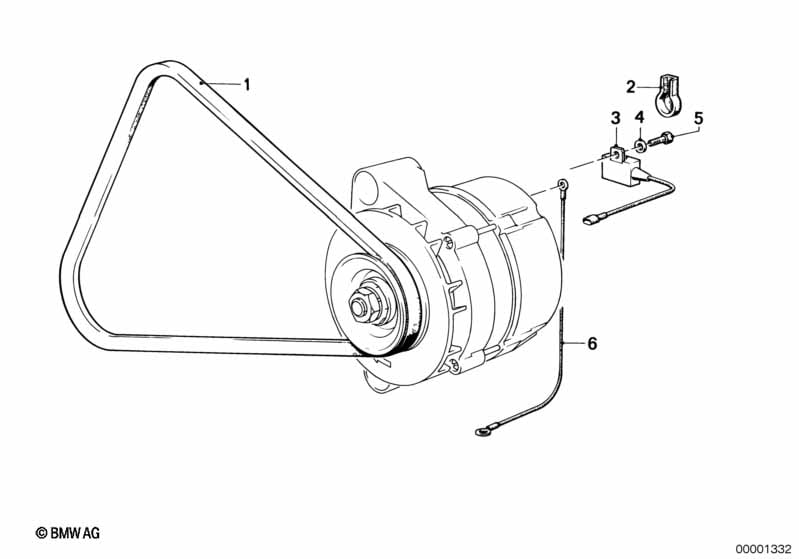

This Fan belt technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ** V-belt revision for revised pulley dia. from 61 mm to 66 mm with alternator 1 284 460/461.1 |
|||||||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 02 | Insulating cover | 8MM | 1 | 12311273137 | $6.22 | Shop at ECS Tuning | ||||
| 02 | Insulating cover | 8/5MM | 1 | 12311286664 | $6.62 | Shop at ECS Tuning | ||||
| 03 | Suppression capacitor alternator | BOSCH | 1 | 12311356564 | $18.88 | +core | Shop at ECS Tuning | |||
| 03 | Suppression capacitor | 1 | 65311355882 | ENDED | Shop at ECS Tuning | |||||
| 04 | Spring washer Black | B6-ZN | 1 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 04 | Washer | 5.3-140 HV-ZNS | 1 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 04 | Wave washer | B6-ZNS3 | 1 | 07119904496 | $1.78 | ENDED | Shop at ECS Tuning | |||
| 05 | Hex bolt | M6X8 | 1 | 07119913420 | $0.13 | ENDED | Shop at ECS Tuning | |||
| 06 | Ground cable | L=170MM | 1 | 12521285011 | $15.59 | ENDED | Shop at ECS Tuning | |||
| 06 | Ground cable alternator | L=170MM | 1 | 12521312124 | $15.59 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
