Alternator, individual parts for BMW 7 Series E23 728 (1979)

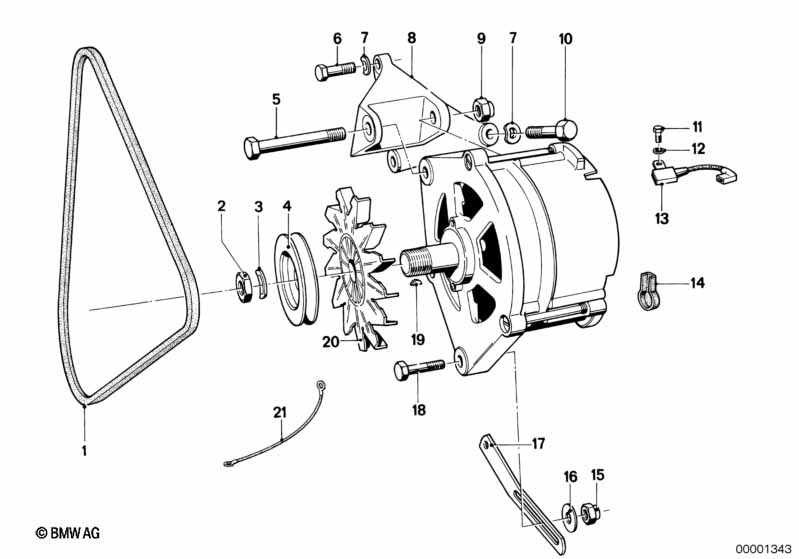

This Alternator, individual parts technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fan belt | 12,5X1055 | 1 | 11231711090 | $11.16 | Shop at ECS Tuning | ||||
| 02 | Hex nut | M14X1,5 | 1 | 07119901309 | $1.65 | Shop at ECS Tuning | ||||
| 03 | Spring washer | B14 | 1 | 07119933148 | $0.20 | Shop at ECS Tuning | ||||
| 04 | Pulley | 1 | 12311362465 | $28.52 | ENDED | Shop at ECS Tuning | ||||
| 05 | Hex bolt | M10X80 | 1 | 31111136251 | $1.11 | ENDED | Shop at ECS Tuning | |||
| 06 | Hex bolt | M8X35 | 2 | 07119913676 | $0.36 | Shop at ECS Tuning | ||||
| 07 | Wave washer | 8,4X15-ZNS3 | 3 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 08 | Supporting bracket | 1 | 12311257279 | $50.64 | ENDED | Shop at ECS Tuning | ||||
| 09 | Self-locking hex nut | M10-10 ZNS3 | 1 | 33326768900 | $0.78 | Shop at ECS Tuning | ||||
| 10 | Hex bolt | M8X30-ZN | 1 | 07119913662 | $0.22 | Shop at ECS Tuning | ||||
| 10 | Hex bolt | M8X30 | 1 | 07119913664 | $0.47 | Shop at ECS Tuning | ||||
| 11 | Hex bolt | M5X8 | 1 | 07119913212 | $0.25 | Shop at ECS Tuning | ||||
| 12 | Wave washer | B5 | 1 | 07119932098 | $0.38 | Shop at ECS Tuning | ||||
| 13 | Suppression capacitor alternator | BOSCH | 1 | 12311356564 | $18.88 | +core | Shop at ECS Tuning | |||
| 14 | Insulating cover | 6MM | 1 | 12311356217 | $2.95 | ENDED | Shop at ECS Tuning | |||
| 15 | Self-locking hex nut | M8-8-ZNNI SI | 1 | 07129906196 | $1.60 | Shop at ECS Tuning | ||||
| 16 | Washer | A8,4X25 | 1 | 07147201571 | $0.20 | Shop at ECS Tuning | ||||
| 17 | Adjusting bar | 1 | 12311266121 | $1.74 | ENDED | Shop at ECS Tuning | ||||
| 18 | Hex bolt | M8X40-ZNNIV SI | 1 | 07119905549 | $1.05 | Shop at ECS Tuning | ||||
| 19 | Woodruff key | 4X5 | 1 | 07119951453 | $0.36 | Shop at ECS Tuning | ||||
| 20 | Fan wheel | 1 | 12311350199 | $14.54 | Shop at ECS Tuning | |||||
| 21 | Ground cable | 1 | 12522903323 | Shop at ECS Tuning | ||||||
| 21 | Ground cable alternator | 1 | 61123902864 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 728 Alternator, individual parts?
- This technical diagram illustrates the Alternator, individual parts within the Engine electrical system group for the 7 Series E23 728 produced during 1979. It provides a detailed exploded view of the components, identifying key parts such as the Fan belt (Part #11231711090).
- Which models use the hardware listed in this Alternator, individual parts?
- The hardware and components featured in the Alternator, individual parts are specific to the 7 Series E23 728 produced during 1979. These technical specifications ensure that parts like the Fan belt (11231711090) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Alternator, individual parts assembly?
- Each item in the Alternator, individual parts corresponds to the numbered list below the illustration. For the 7 Series E23 728, you can identify the Fan belt by locating its position on the schematic, which then links to the official BMW part number 11231711090 for the Engine electrical system section.
