Alternatormounting parts for BMW 3 Series E30 M3 (1990)

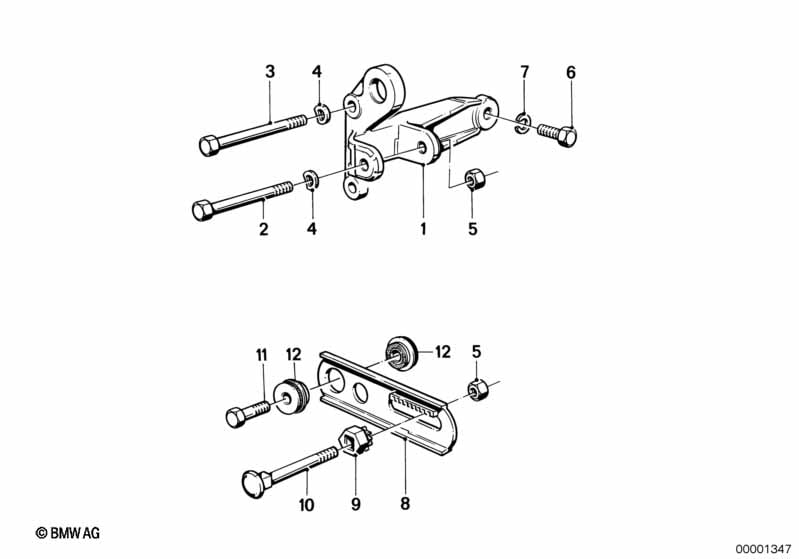

This Alternatormounting parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Supporting bracket | FÜR 80AH LIMA | 1 | 12311284306 | $83.00 | ENDED | Shop at ECS Tuning | |||
| 02 | Hex bolt | M8X80 | 1 | 07119912558 | $2.89 | Shop at ECS Tuning | ||||
| 03 | Hex bolt | M8X80 | 1 | 07119912558 | $2.89 | Shop at ECS Tuning | ||||
| 04 | Wave washer | 8,4X15-ZNS3 | 2 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 05 | Self-locking hex nut | M8-8-ZNNI SI | 2 | 07129906196 | $1.60 | Shop at ECS Tuning | ||||
| 06 | Hex bolt | M10X20-10.9-PHR | 1 | 07119913830 | $0.43 | Shop at ECS Tuning | ||||
| 07 | Wave washer | B10-ZNS3 | 1 | 07119904463 | Shop at ECS Tuning | |||||
| 08 | Adjusting bar | FÜR 80AH LIMA | 1 | 12311312137 | $28.52 | Shop at ECS Tuning | ||||
| 09 | Idler | 1 | 12317677914 | $4.26 | Shop at ECS Tuning | |||||
| 10 | Saucer-head screw | M8X80 | 1 | 12311276516 | $2.40 | Shop at ECS Tuning | ||||
| 11 | Hex bolt | M8X35 | 1 | 07119913676 | $0.36 | Shop at ECS Tuning | ||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 11 | Hex bolt | M8X28-ZN | 1 | 07119913659 | $0.47 | ENDED | Shop at ECS Tuning | |||
| 12 | Bush | 4 | 11721261404 | $7.58 | Shop at ECS Tuning | |||||
