Alternatormounting parts for BMW 3 Series E21 318i (1982)

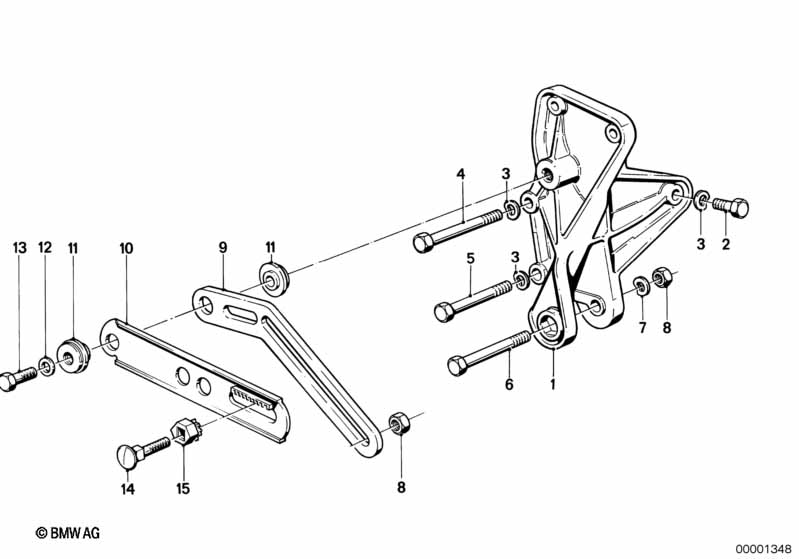

This Alternatormounting parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Supporting bracket | 1 | 12311266828 | $32.23 | Shop at ECS Tuning | |||||
| For vehicles with Power steering |
=Yes |
|||||||||
| 01 | Supporting bracket | 1 | 32411270324 | $95.70 | ENDED | Shop at ECS Tuning | ||||
| 02 | Hex bolt | M8X25-8.8-ZNNIV | 1 | 07119906181 | $0.55 | Shop at ECS Tuning | ||||
| 02 | Hex bolt | M8X25 | 1 | 07119913653 | $0.47 | Shop at ECS Tuning | ||||
| 03 | Wave washer | 8,4X15-ZNS3 | 3 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M8X75-8.8-ZNS3 | 1 | 07119906028 | Shop at ECS Tuning | |||||
| 05 | Hex bolt | M8X80 | 1 | 07119912558 | $2.89 | Shop at ECS Tuning | ||||
| 06 | Hex bolt | M8X85-8.8 | 1 | 07119908003 | Shop at ECS Tuning | |||||
| 06 | Hex bolt | M8X85 | 1 | 12311716014 | $1.13 | Shop at ECS Tuning | ||||
| 07 | Washer | 8,4X16X1,6-ZNNV | 2 | 07119907030 | Shop at ECS Tuning | |||||
| 08 | Self-locking hex nut | M8-8-ZNNI SI | 2 | 07129906196 | $1.60 | Shop at ECS Tuning | ||||
| 09 | Adjusting bar | 1 | 12311266830 | $5.08 | Shop at ECS Tuning | |||||
| 10 | Adjusting bar | 1 | 12311273638 | $5.35 | Shop at ECS Tuning | |||||
| 11 | Bush | 2 | 11721261404 | $7.58 | Shop at ECS Tuning | |||||
| 12 | Washer | 8,4X24X2-ZNS3 | 1 | 07119904164 | $0.40 | Shop at ECS Tuning | ||||
| 13 | Hex bolt | M8X30-ZN | 1 | 07119913662 | $0.22 | Shop at ECS Tuning | ||||
| 13 | Hex bolt | M8X30 | 1 | 07119913664 | $0.47 | Shop at ECS Tuning | ||||
| 14 | Saucer-head screw | M8X40 | 1 | 07119910463 | $0.92 | Shop at ECS Tuning | ||||
| 14 | Saucer-head screw | M8X50 | 1 | 12311276540 | $0.93 | ENDED | Shop at ECS Tuning | |||
| 15 | Idler | 1 | 12317677914 | $4.26 | Shop at ECS Tuning | |||||
