Alternator, individual parts for BMW 5 Series E28 524td (1987)

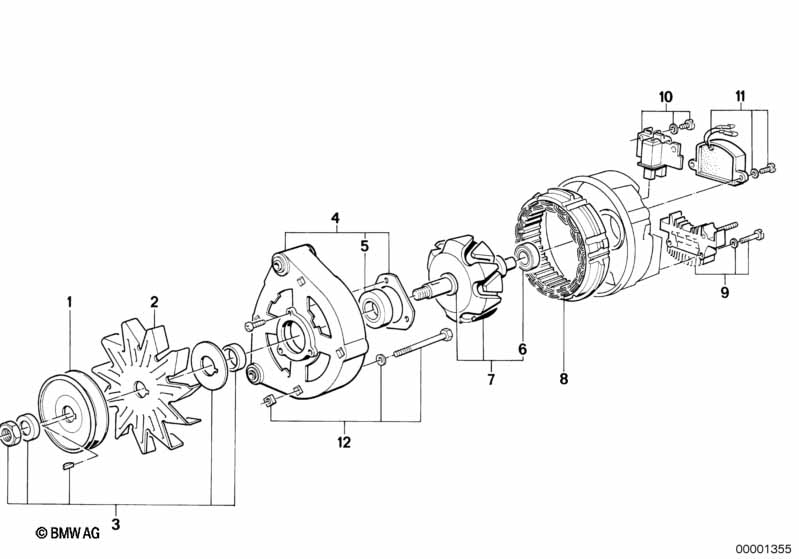

This Alternator, individual parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 524td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Typ-Nr. 294.0.130 | |||||||||
| only applies to | ||||||||||
| -- | Alternator | 80A | X | 12312240875 | $564.60 | ENDED | Shop at ECS Tuning | |||
| 01 | Pulley | D=76MM | 1 | 12312243047 | $31.13 | ENDED | Shop at ECS Tuning | |||
| 02 | Fan wheel | 1 | 12311284426 | $12.05 | ENDED | Shop at ECS Tuning | ||||
| 03 | Set mounting parts | 1 | 12312240918 | $20.53 | Shop at ECS Tuning | |||||
| 04 | Housing assy front | 1 | 12312240915 | $99.60 | ENDED | Shop at ECS Tuning | ||||
| 05 | Grooved ball bearing | 40X17X12 | 1 | 12311714522 | $17.93 | ENDED | Shop at ECS Tuning | |||
| 06 | Grooved ball bearing | 30X10X9 | 1 | 12311707240 | $21.20 | ENDED | Shop at ECS Tuning | |||
| 07 | Rotor | 1 | 12312241358 | $106.58 | Shop at ECS Tuning | |||||
| 08 | Stator assy | 1 | 12312241364 | $156.24 | ENDED | Shop at ECS Tuning | ||||
| 09 | Diode assy | GENERATOR | 1 | 12312240912 | $143.96 | Shop at ECS Tuning | ||||
| 10 | Brush holder plate | 1 | 12311707246 | $33.90 | Shop at ECS Tuning | |||||
| 11 | Voltage regulator | 1 | 12312240911 | $120.52 | ENDED | Shop at ECS Tuning | ||||
| 12 | Repair kit screws | 1 | 12312241366 | $4.30 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
