Alternator, individual parts for BMW 6 Series E24 633CSi (1978)

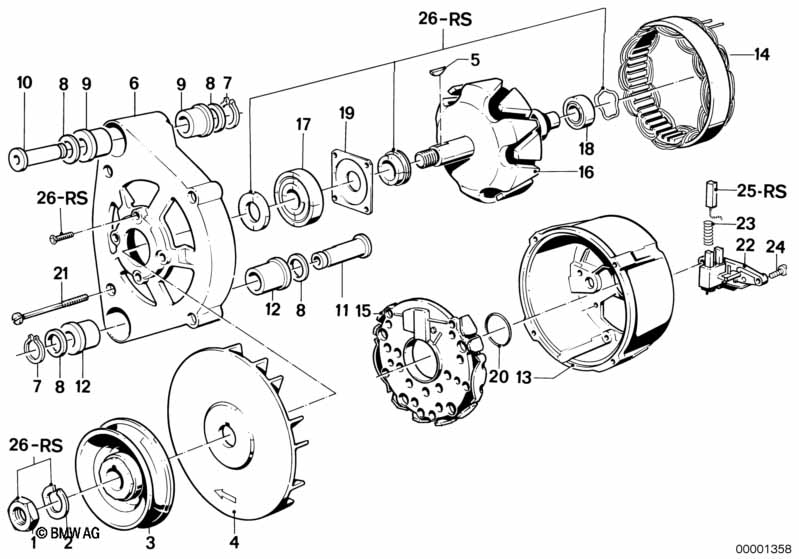

This Alternator, individual parts technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1978.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ONLY APPLIES TO ALTERNATOR BOSCH Typ Nr. 0 120 469 539 = BMW 12 31 1 271 663 |
|||||||||
| only applies to | ||||||||||
| -- | Alternator | 80A | X | 12311271663 | ENDED | Shop at ECS Tuning | ||||
| 01 | Hex nut | M14X1,5 | 1 | 07119901309 | $1.65 | Shop at ECS Tuning | ||||
| 02 | Spring washer | B14 | 1 | 07119933148 | $0.20 | Shop at ECS Tuning | ||||
| 03 | Pulley | 1 | 12311362465 | $28.52 | ENDED | Shop at ECS Tuning | ||||
| 04 | Fan wheel | 1 | 12311273138 | $21.73 | ENDED | Shop at ECS Tuning | ||||
| 05 | Woodruff key | 4X5 | 1 | 07119951453 | $0.36 | Shop at ECS Tuning | ||||
| 06 | Housing assy front | 1 | 12311276215 | ENDED | Shop at ECS Tuning | |||||
| 07 | Lock Ring | 2 | 12311276226 | $2.90 | Shop at ECS Tuning | |||||
| 08 | Washer | 4 | 12311268420 | $7.16 | Shop at ECS Tuning | |||||
| 09 | Bush | 75 SHORE LANG | 2 | 12311268433 | $6.25 | ENDED | Shop at ECS Tuning | |||
| 09 | Bush | LANG | 2 | 12311268447 | $10.41 | Shop at ECS Tuning | ||||
| 10 | Bush | 1 | 12311276227 | $13.99 | Shop at ECS Tuning | |||||
| 11 | Bush | 1 | 12311276227 | $13.99 | Shop at ECS Tuning | |||||
| 12 | Bush | LANG | 2 | 12311268447 | $10.41 | Shop at ECS Tuning | ||||
| 13 | Housing assy rear | 1 | 12311276221 | ENDED | Shop at ECS Tuning | |||||
| 14 | Stator assy | 1 | 12311727758 | $309.13 | ENDED | Shop at ECS Tuning | ||||
| 15 | Diode assy | 1 | 12311288427 | $200.88 | ENDED | Shop at ECS Tuning | ||||
| 16 | Rotor | 1 | 12311288424 | $382.79 | ENDED | Shop at ECS Tuning | ||||
| 17 | Grooved ball bearing | 47X17X14 | 1 | 12311722979 | $33.90 | ENDED | Shop at ECS Tuning | |||
| 18 | Grooved ball bearing | 28X12X12 | 1 | 12311714521 | $23.12 | Shop at ECS Tuning | ||||
| 19 | Supporting plate | 1 | 12311727740 | $7.13 | ENDED | Shop at ECS Tuning | ||||
| 21 | Fillister-head screw | 4 | 12311722982 | $1.47 | ENDED | Shop at ECS Tuning | ||||
| 22 | Voltage regulator | BOSCH | 1 | 12311286073 | $63.58 | ENDED | Shop at ECS Tuning | |||
| 23 | Compression spring | 2 | 12311268412 | $0.35 | Shop at ECS Tuning | |||||
| 24 | Fillister-head screw | 2 | 12311747251 | $0.58 | ENDED | Shop at ECS Tuning | ||||
| 25 | Carbon brush set | 1 | 12311354681 | $4.08 | ENDED | Shop at ECS Tuning | ||||
| 26 | Repair kit rotor | 1 | 12311727762 | $18.57 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
