Alternator cooling for BMW 5 Series E34 535i (1993)

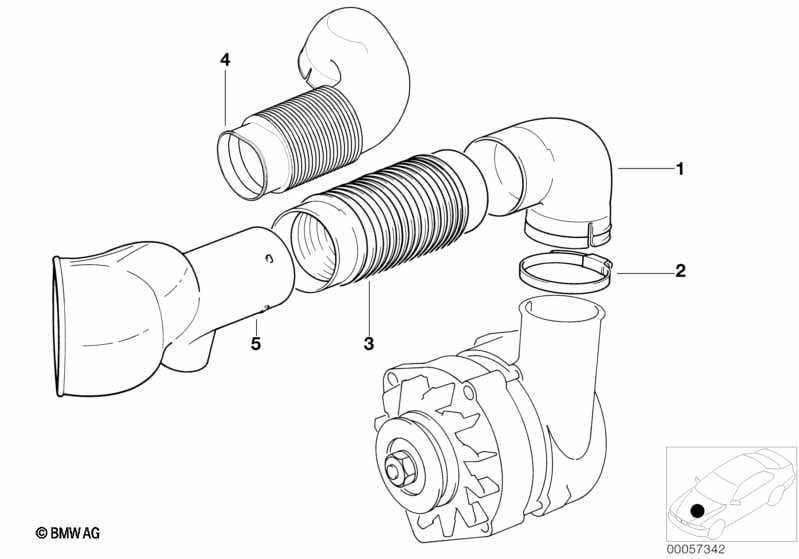

This Alternator cooling technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1993.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pipe | 1 | 12311718907 | $3.83 | ENDED | Shop at ECS Tuning | ||||
| 02 | Hose clamp | L59-66 | 1 | 07129952125 | $1.64 | Shop at ECS Tuning | ||||
| 03 | Rubber boot | 1 | 12311710514 | $2.58 | Shop at ECS Tuning | |||||
| 04 | Rubber boot | 1 | 12311735709 | $19.53 | Shop at ECS Tuning | |||||
| 05 | Intake manifold | 1 | 12311718908 | $6.65 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E34 535i Alternator cooling?
- This technical diagram illustrates the Alternator cooling within the Engine electrical system group for the 5 Series E34 535i produced during 1993. It provides a detailed exploded view of the components, identifying key parts such as the Pipe (Part #12311718907).
- Which models use the hardware listed in this Alternator cooling?
- The hardware and components featured in the Alternator cooling are specific to the 5 Series E34 535i produced during 1993. These technical specifications ensure that parts like the Pipe (12311718907) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Alternator cooling assembly?
- Each item in the Alternator cooling corresponds to the numbered list below the illustration. For the 5 Series E34 535i, you can identify the Pipe by locating its position on the schematic, which then links to the official BMW part number 12311718907 for the Engine electrical system section.
