Starter for BMW 3 Series E21 320 (1982)

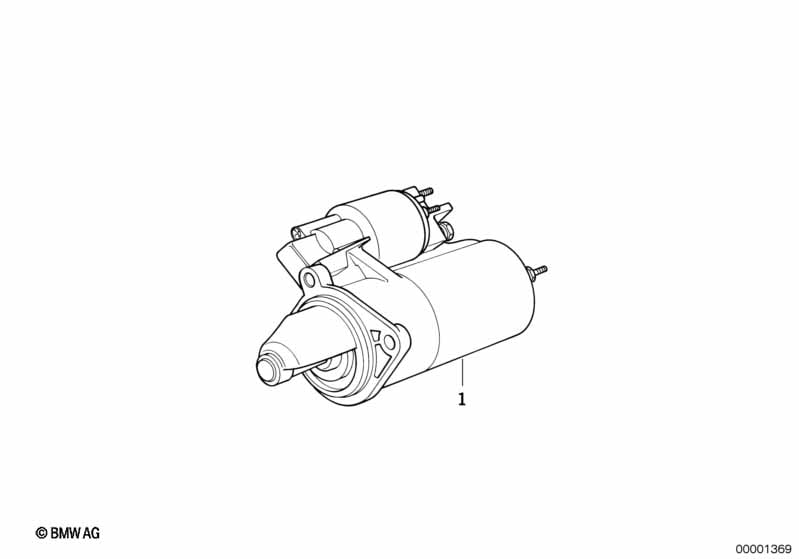

This Starter technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Starter | 1,1KW | 1 | 12411361874 | Shop at ECS Tuning | |||||
| 01 | Starter | 1,4KW | 1 | 12411726504 | ENDED | Shop at ECS Tuning | ||||
| 01 | Starter | 1,4KW | 1 | 12412289185 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 320 Starter?
- This technical diagram illustrates the Starter within the Engine electrical system group for the 3 Series E21 320 produced during 1982. It provides a detailed exploded view of the components, identifying key parts such as the Starter (Part #12411361874).
- Which models use the hardware listed in this Starter?
- The hardware and components featured in the Starter are specific to the 3 Series E21 320 produced during 1982. These technical specifications ensure that parts like the Starter (12411361874) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Starter assembly?
- Each item in the Starter corresponds to the numbered list below the illustration. For the 3 Series E21 320, you can identify the Starter by locating its position on the schematic, which then links to the official BMW part number 12411361874 for the Engine electrical system section.
