Fastening parts, starter motor for BMW 3 Series E21 318i (1982)

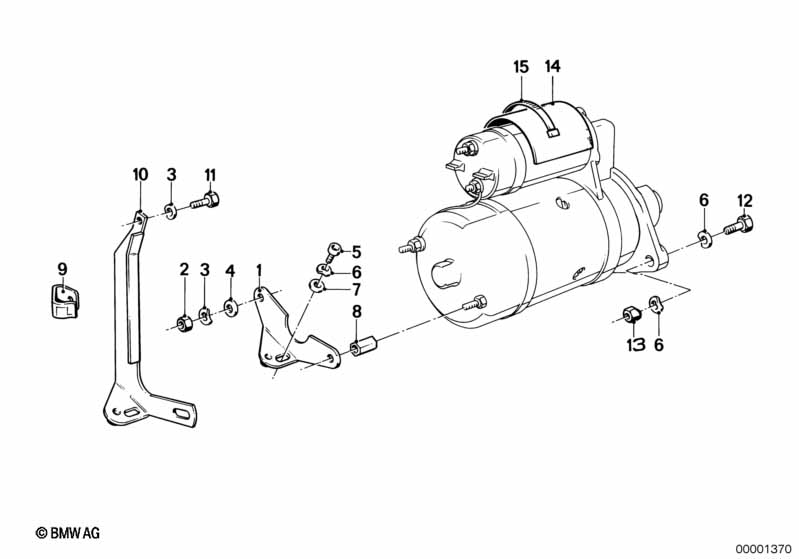

This Fastening parts, starter motor technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Support plate | ANLASSER | 1 | 12411269598 | $1.96 | Shop at ECS Tuning | ||||
| 02 | Hex nut | M6-8-ZNNIV SI | 2 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 04 | Washer | A6,4-ZNNIV SI | 2 | 07119904202 | Shop at ECS Tuning | |||||
| 05 | Fillister-head screw | M10X12 | 1 | 72118108712 | $1.58 | ENDED | Shop at ECS Tuning | |||
| 06 | Wave washer | B10-ZNS3 | 1 | 07119904463 | Shop at ECS Tuning | |||||
| 12 | Hex bolt | M10X75 | 1 | 11111735525 | $0.93 | Shop at ECS Tuning | ||||
| 13 | Hex nut | AM10-10-ZNS3 | 2 | 07129904865 | $1.00 | Shop at ECS Tuning | ||||
| 14 | Covering solenoid switch | 1 | 61131361340 | $3.02 | Shop at ECS Tuning | |||||
| 15 | Cable tie | L=292MM/B=4,8MM | 2 | 61131377134 | $0.77 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 318i Fastening parts, starter motor?
- This technical diagram illustrates the Fastening parts, starter motor within the Engine electrical system group for the 3 Series E21 318i produced during 1982. It provides a detailed exploded view of the components, identifying key parts such as the Support plate (Part #12411269598).
- Which models use the hardware listed in this Fastening parts, starter motor?
- The hardware and components featured in the Fastening parts, starter motor are specific to the 3 Series E21 318i produced during 1982. These technical specifications ensure that parts like the Support plate (12411269598) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Fastening parts, starter motor assembly?
- Each item in the Fastening parts, starter motor corresponds to the numbered list below the illustration. For the 3 Series E21 318i, you can identify the Support plate by locating its position on the schematic, which then links to the official BMW part number 12411269598 for the Engine electrical system section.
