Starter single parts for BMW 5 Series E12 525 (1981)

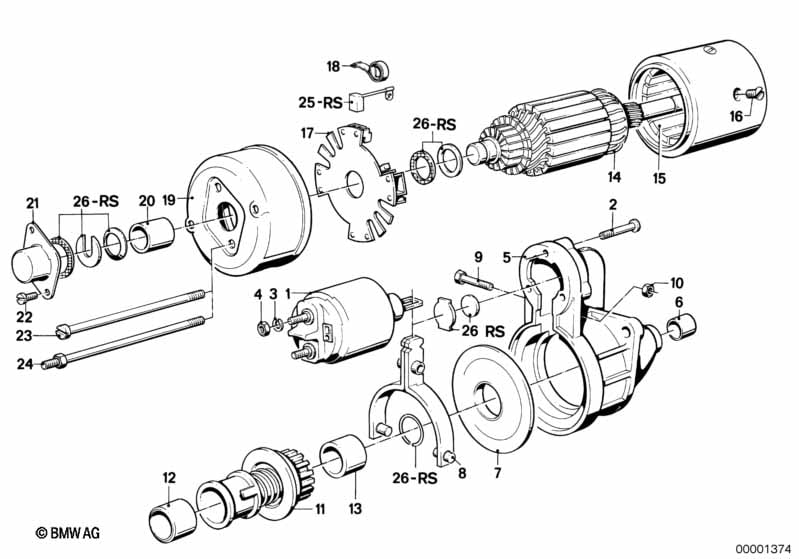

This Starter single parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 525. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Typ Nr. 0 001 314 045 | |||||||||
| 03 | Spring washer | B8 | 1 | 07119933096 | $0.18 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Starter | 1,5KW | X | 12411717174 | $233.24 | ENDED | Shop at ECS Tuning | |||
| 04 | Hex nut | M8-8-ZNS3 | 1 | 07/1981 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 04 | Hex nut | M8-8-ZNNIV SI | 1 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 12 | Bushing | 2 | 11511722914 | $5.19 | ENDED | Shop at ECS Tuning | ||||
| 13 | Ring | 1 | 12411722915 | $3.63 | Shop at ECS Tuning | |||||
| 16 | Countersunk head screw | 4 | 12411354571 | ENDED | Shop at ECS Tuning | |||||
| 17 | Brush holder plate | 1 | 12411274607 | $19.96 | Shop at ECS Tuning | |||||
| 19 | Collector guiding | 1 | 12411268371 | $15.62 | ENDED | Shop at ECS Tuning | ||||
| 20 | Bushing | 1 | 12411722916 | $3.85 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
