What assembly is shown in the BMW 3 Series E30 324dStarter single parts?

This technical diagram illustrates the Starter single parts within the Engine electrical system group for the 3 Series E30 324d. It provides a detailed exploded view of the components, identifying key parts such as the Solenoid switch (Part #12411289494).

Which models use the hardware listed in this Starter single parts?

The hardware and components featured in the Starter single parts are specific to the 3 Series E30 324d. These technical specifications ensure that parts like the Solenoid switch (12411289494) are correctly matched to the vehicle's structural and mechanical requirements.

How do I find specific parts within the Starter single parts assembly?

Each item in the Starter single parts corresponds to the numbered list below the illustration. For the 3 Series E30 324d, you can identify the Solenoid switch by locating its position on the schematic, which then links to the official BMW part number 12411289494 for the Engine electrical system section.

Starter single parts for BMW 3 Series E30 324d

Sign In
Sign Out
Account

Donate Go Ad Free

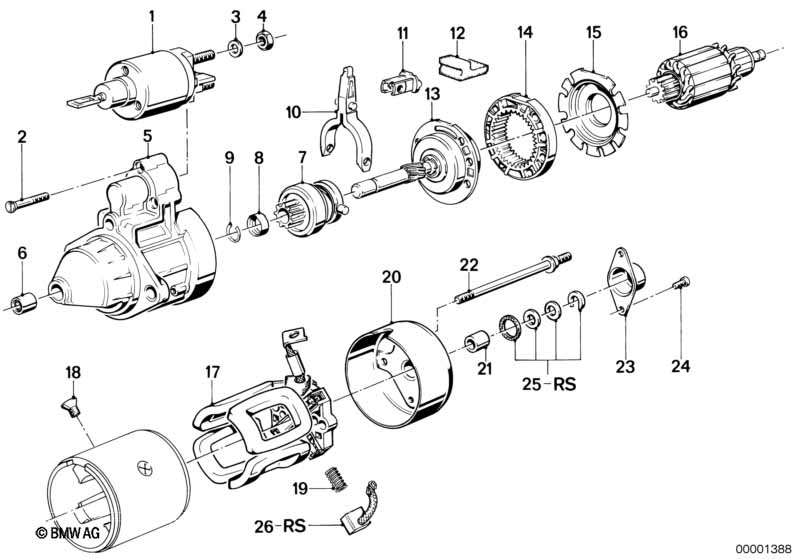

This Starter single parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 324d. It includes part names, part numbers and all associated mounting hardware.

No.	Description	Supp.	Qty	Part Number	Price	Notes
i	Typ Nr.0 001 218 009
01	Solenoid switch		1	12411289494	$119.58	ENDED	Shop at ECS Tuning
	only applies to
--	Starter	2,2KW	X	12411288166	$1127.16	ENDED	Shop at ECS Tuning
02	Countersunk head screw		3	12411721286	$2.45	ENDED	Shop at ECS Tuning
	only applies to
--	Starter	2,2KW	X	12411288166	$1127.16	ENDED	Shop at ECS Tuning
03	Spring washer	B8	2	07119933096	$0.18		Shop at ECS Tuning
	only applies to
--	Starter	2,2KW	X	12411288166	$1127.16	ENDED	Shop at ECS Tuning
04	Hex nut	M8-05-ZNNIV SI	2	07119904948	$1.00		Shop at ECS Tuning
05	Housing assy front		1	12411273169		ENDED	Shop at ECS Tuning
	only applies to
--	Starter	2,2KW	X	12411288166	$1127.16	ENDED	Shop at ECS Tuning
06	Needle sleeve		1	12411735888	$8.97		Shop at ECS Tuning
	only applies to
--	Starter	2,2KW	X	12411288166	$1127.16	ENDED	Shop at ECS Tuning
07	Free wheel pinion		1	12411289480	$98.68		Shop at ECS Tuning
	only applies to
--	Starter	2,2KW	X	12411288166	$1127.16	ENDED	Shop at ECS Tuning
08	Ring		1	12411289500	$2.68	ENDED	Shop at ECS Tuning
	only applies to
--	Starter	2,2KW	X	12411288166	$1127.16	ENDED	Shop at ECS Tuning
09	Snap ring		1	12411289501	$1.13	ENDED	Shop at ECS Tuning
	only applies to
--	Starter	2,2KW	X	12411288166	$1127.16	ENDED	Shop at ECS Tuning
10	Shift lever		1	12411289482	$1.98	ENDED	Shop at ECS Tuning
	only applies to
--	Starter	2,2KW	X	12411288166	$1127.16	ENDED	Shop at ECS Tuning
11	Suspension		1	12411289502	$1.04	ENDED	Shop at ECS Tuning
	only applies to
--	Starter	2,2KW	X	12411288166	$1127.16	ENDED	Shop at ECS Tuning
12	Gasket		1	12411289503	$6.70	ENDED	Shop at ECS Tuning
	only applies to
--	Starter	2,2KW	X	12411288166	$1127.16	ENDED	Shop at ECS Tuning
13	Planet wheel set		1	12411736763	$154.01	ENDED	Shop at ECS Tuning
	only applies to
--	Starter	2,2KW	X	12411288166	$1127.16	ENDED	Shop at ECS Tuning
14	Planet wheel set		1	12411736763	$154.01	ENDED	Shop at ECS Tuning
	only applies to
--	Starter	2,2KW	X	12411288166	$1127.16	ENDED	Shop at ECS Tuning
15	Planet wheel set		1	12411736763	$154.01	ENDED	Shop at ECS Tuning
	only applies to
--	Starter	2,2KW	X	12411288166	$1127.16	ENDED	Shop at ECS Tuning
16	Armature		1	12411289488		ENDED	Shop at ECS Tuning
17	Exciter winding		1	12411289495	$427.43	ENDED	Shop at ECS Tuning
	only applies to
--	Starter	2,2KW	X	12411288166	$1127.16	ENDED	Shop at ECS Tuning
19	Compression spring		4	12411289497	$6.25	ENDED	Shop at ECS Tuning
	only applies to
--	Starter	2,2KW	X	12411288166	$1127.16	ENDED	Shop at ECS Tuning
20	Collector guiding		1	12411289489	$28.74	ENDED	Shop at ECS Tuning
	only applies to
--	Starter	2,2KW	X	12411288166	$1127.16	ENDED	Shop at ECS Tuning
21	Bushing		1	12411289490	$2.96	ENDED	Shop at ECS Tuning
	only applies to
--	Starter	2,2KW	X	12411288166	$1127.16	ENDED	Shop at ECS Tuning
22	Screw		2	12411289492	$3.91	ENDED	Shop at ECS Tuning
	only applies to
--	Starter	2,2KW	X	12411288166	$1127.16	ENDED	Shop at ECS Tuning
23	Covering cap		1	12411289491	$1.32	ENDED	Shop at ECS Tuning
	only applies to
--	Starter	2,2KW	X	12411288166	$1127.16	ENDED	Shop at ECS Tuning
24	ISA screw	M4X8-8.8	2	07129904838	$2.58		Shop at ECS Tuning
25	Repair kit for starter		1	12411289499	$19.96		Shop at ECS Tuning
	only applies to
--	Starter	2,2KW	X	12411288166	$1127.16	ENDED	Shop at ECS Tuning
26	Carbon brush set		1	12411289498	$39.34	ENDED	Shop at ECS Tuning
	only applies to
--	Starter	2,2KW	X	12411288166	$1127.16	ENDED	Shop at ECS Tuning

Notes

ENDED = the part has been discontinued (no longer available).
