Battery cable for BMW 5 Series E34 525i (1995)

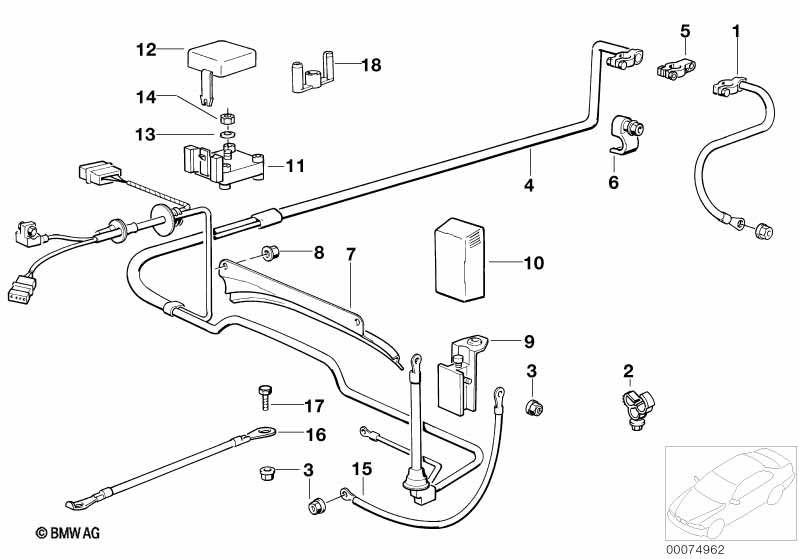

This Battery cable technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Battery cable negative | L=860MM | 1 | 12421719713 | $28.24 | Shop at ECS Tuning | ||||
| 03 | Hex nut | M8 | 6 | 07149125856 | $1.33 | Shop at ECS Tuning | ||||
| 04 | Battery cable (plus pole) | 1 | 09/1992 | 12421737416 | $183.87 | ENDED | Shop at ECS Tuning | |||
| 05 | Batteryclamp positive | 95+6+10 QMM | 1 | 12422242044 | $15.25 | ENDED | Shop at ECS Tuning | |||
| 06 | Clamp | 4 | 12521710686 | $0.63 | Shop at ECS Tuning | |||||
| 10 | Cover | 1 | 12421718208 | $2.50 | Shop at ECS Tuning | |||||
| 11 | Base B+ | 1 | 12427514342 | $16.92 | Shop at ECS Tuning | |||||
| 12 | Cover | 1 | 12421718209 | $2.18 | Shop at ECS Tuning | |||||
| 15 | Cable, starter | 1 | 12421732678 | $20.43 | Shop at ECS Tuning | |||||
| 16 | Ground cable | L=380MM | 1 | 12421737755 | $19.50 | Shop at ECS Tuning | ||||
| 17 | Hex bolt | M8X25-8.8-ZNNIV | 1 | 07119906181 | $0.55 | Shop at ECS Tuning | ||||
| 17 | Hex bolt | M8X25 | 1 | 07119913653 | $0.47 | Shop at ECS Tuning |
