Wiring connections for BMW 6 Series E24 635CSi (1989)

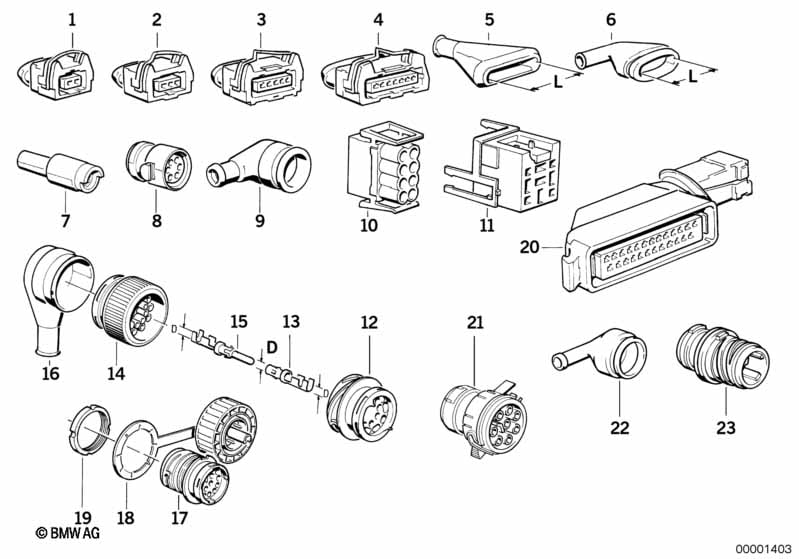

This Wiring connections technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 635CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Plug housing | 2 POL. | X | 12521706091 | $4.02 | Shop at ECS Tuning | ||||
| 02 | Plug housing | X | 12521706096 | $7.59 | Shop at ECS Tuning | |||||
| 03 | Plug housing | X | 12521706097 | $2.03 | ENDED | Shop at ECS Tuning | ||||
| 04 | Plug housing | 7 POL. | X | 12521706059 | $7.10 | Shop at ECS Tuning | ||||
| 05 | Protection cap | L=27,0MM | X | 61131270973 | $6.33 | Shop at ECS Tuning | ||||
| 05 | Protection cap | L=12,5MM | X | 61131358330 | $5.33 | Shop at ECS Tuning | ||||
| 05 | Protection cap | L=37,0MM | X | 61131358332 | $6.73 | Shop at ECS Tuning | ||||
| 05 | Protection cap | L=17,5MM | X | 61131358603 | $5.32 | Shop at ECS Tuning | ||||
| 06 | Protection cap | L=27,0MM | X | 61131459414 | $5.90 | ENDED | Shop at ECS Tuning | |||
| 07 | Plug housing | LAMBDA | X | 61131373239 | $4.27 | Shop at ECS Tuning | ||||
| 08 | Plug housing | 6-POL | X | 12521707321 | $12.77 | Shop at ECS Tuning | ||||
| 09 | Protection cap | X | 12521711262 | $3.22 | Shop at ECS Tuning | |||||
| 11 | Relais base black | X | 61131389114 | $5.32 | Shop at ECS Tuning | |||||
| 12 | Plug housing | 20POL | X | 12521707284 | $8.28 | ENDED | Shop at ECS Tuning | |||
| D= 2.5 mm | ||||||||||
| 13 | Snap-in receptacle 2.5 | 0,5-1,0MM² | X | 61131376202 | $0.98 | Shop at ECS Tuning | ||||
| 13 | Snap-in receptacle 2.5 | 1,0-2,5MM² | X | 61131376204 | $0.98 | Shop at ECS Tuning | ||||
| 13 | Snap-in receptacle 2.5 | 2,5-4,0MM² | X | 61131376206 | $0.98 | Shop at ECS Tuning | ||||
| 14 | Plug housing | 20POL | X | 12521707283 | $13.40 | Shop at ECS Tuning | ||||
| D= 2.5 mm | ||||||||||
| 15 | Circular contact 2.5 | 2,5-4,0MM² | X | 07/1996 | 61131376195 | $1.05 | ENDED | Shop at ECS Tuning | ||
| 15 | Circular contact 2.5 | 2,5-4,0MM² AG | X | 61139344421 | Shop at ECS Tuning | |||||
| 15 | Circular contact 2.5 | 0,5-1,0MM² | X | 61131376191 | $0.55 | Shop at ECS Tuning | ||||
| 15 | Circular contact 2.5 | 1,0-2,5MM² | X | 61131376193 | $1.12 | Shop at ECS Tuning | ||||
| 16 | Protection cap | KBB | X | 12521707302 | $2.87 | Shop at ECS Tuning | ||||
| 17 | Plug housing | DIAGNOSE | X | 12521711218 | $8.52 | Shop at ECS Tuning | ||||
| 18 | Cover, diagnostics plug | X | 12521724690 | $15.78 | Shop at ECS Tuning | |||||
| 19 | Nut | DIAGNOSE | X | 12521711219 | $4.02 | Shop at ECS Tuning | ||||
| 20 | Plug terminal control unit DDE | X | 12521711255 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
