Engine wiring harness for BMW 7 Series E23 732i (1982)

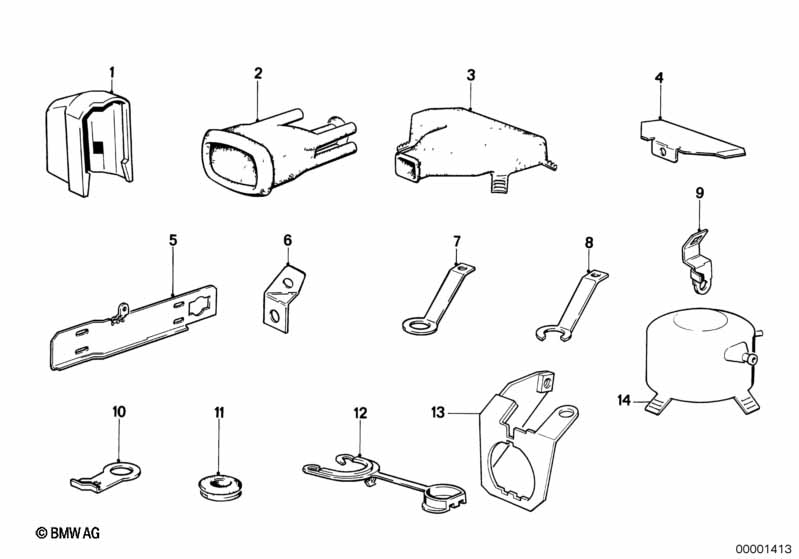

This Engine wiring harness technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 732i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Protection cap | 1 | 61131355159 | $1.41 | ENDED | Shop at ECS Tuning | ||||
| 01 | Protection cap | 1 | 61131371993 | ENDED | Shop at ECS Tuning | |||||
| 02 | Protection cap | 1 | 12511268110 | $13.90 | ENDED | Shop at ECS Tuning | ||||
| 05 | Supporting rail | 1 | 12521270953 | ENDED | Shop at ECS Tuning | |||||
| 09 | Bracket | 1 | 12521276198 | ENDED | Shop at ECS Tuning | |||||
| 11 | Damper ring | 18X23X9 | 1 | 12521276010 | $1.77 | Shop at ECS Tuning | ||||
| 12 | Cover | 1 | 12521286052 | $1.35 | Shop at ECS Tuning | |||||
| 13 | Diagnosis plug bracket | DME | 1 | 12521274629 | $3.68 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
