Cable Harness Fixings for BMW 3 Series E30 325i (1992)

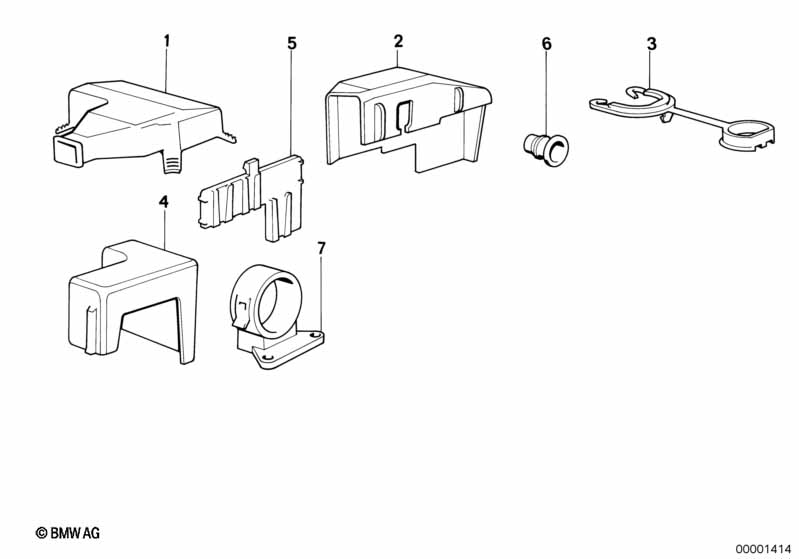

This Cable Harness Fixings technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Protection cap | X | 12521279703 | $10.07 | ENDED | Shop at ECS Tuning | ||||
| 02 | Protection cap | 1 | 12521284465 | $4.37 | ENDED | Shop at ECS Tuning | ||||
| 03 | Cover | 1 | 12521286052 | $1.35 | Shop at ECS Tuning | |||||
| 04 | Covering cap | 1 | 12521279603 | $15.80 | ENDED | Shop at ECS Tuning | ||||
| 05 | Adapter | 1 | 61131377270 | $0.64 | ENDED | Shop at ECS Tuning | ||||
| RELAIS BASE | ||||||||||
| 06 | Rubber grommet | 1 | 61311369343 | $1.93 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
