Petrol pump relay for BMW 7 Series E23 732i (1982)

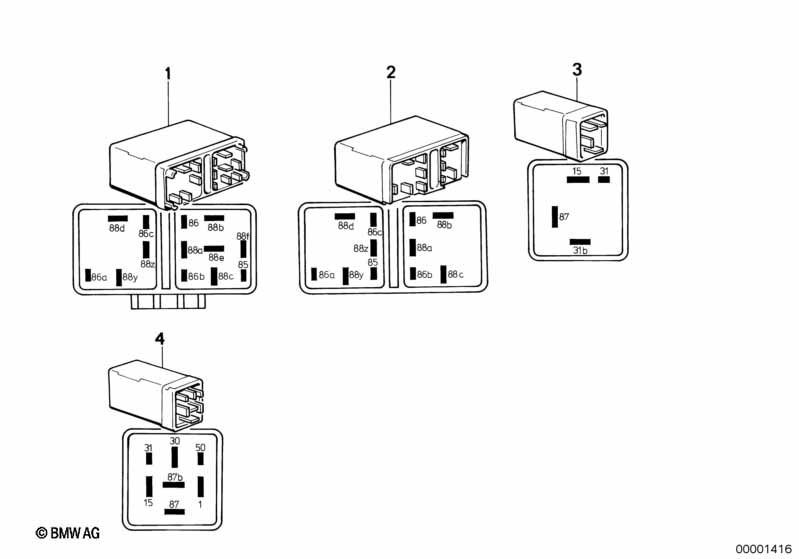

This Petrol pump relay technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 732i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Relay combination | X | 13631272131 | $123.64 | Shop at ECS Tuning | |||||
| 02 | Relay combination | X | 13631273139 | $125.48 | ENDED | Shop at ECS Tuning | ||||
| 04 | Petrol pump relay | X | 13631276264 | $210.14 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
