Cable holder for BMW 5 Series E28 520i (1987)

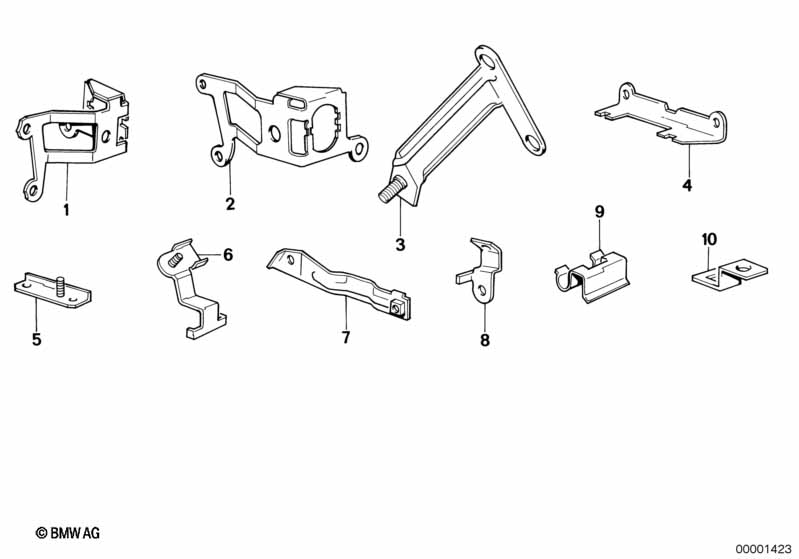

This Cable holder technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Diagnosis plug bracket | 1 | 12/1986 | 12521714132 | $3.95 | ENDED | Shop at ECS Tuning | |||
| 03 | Bracket | 1 | 12521277553 | ENDED | Shop at ECS Tuning | |||||
| 04 | Bracket | 1 | 12521277579 | ENDED | Shop at ECS Tuning | |||||
| 06 | Holder | 1 | 09/1985 | 12521710749 | ENDED | Shop at ECS Tuning | ||||
| 06 | Holder | 1 | 09/1985 | 12521710749 | ENDED | Shop at ECS Tuning | ||||
| 08 | Bracket | 1 | 12521277218 | ENDED | Shop at ECS Tuning | |||||
| 09 | Clamp | 1 | 63171367998 | $1.78 | ENDED | Shop at ECS Tuning | ||||
| 10 | Holder | 1 | 12521269332 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E28 520i Cable holder?
- This technical diagram illustrates the Cable holder within the Engine electrical system group for the 5 Series E28 520i produced during 1987. It provides a detailed exploded view of the components, identifying key parts such as the Diagnosis plug bracket (Part #12521714132).
- Which models use the hardware listed in this Cable holder?
- The hardware and components featured in the Cable holder are specific to the 5 Series E28 520i produced during 1987. These technical specifications ensure that parts like the Diagnosis plug bracket (12521714132) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cable holder assembly?
- Each item in the Cable holder corresponds to the numbered list below the illustration. For the 5 Series E28 520i, you can identify the Diagnosis plug bracket by locating its position on the schematic, which then links to the official BMW part number 12521714132 for the Engine electrical system section.
