Cable holder for BMW 7 Series E32 730i (1992)

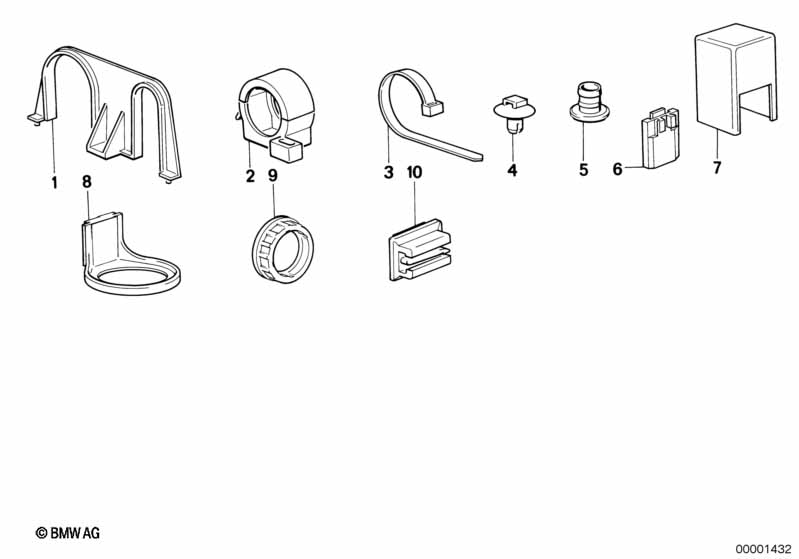

This Cable holder technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 730i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bracket, cable harness | 1 | 12521711244 | $1.68 | Shop at ECS Tuning | |||||
| 02 | Bracket, cable harness | 1 | 12521710716 | $3.57 | Shop at ECS Tuning | |||||
| 03 | Cable tie | L=292MM/B=4,8MM | X | 61131377134 | $0.77 | Shop at ECS Tuning | ||||
| 04 | Push-button | X | 51481900729 | $0.50 | Shop at ECS Tuning | |||||
| 05 | Covering cap | 2 | 12511711432 | $1.32 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E32 730i Cable holder?
- This technical diagram illustrates the Cable holder within the Engine electrical system group for the 7 Series E32 730i produced during 1992. It provides a detailed exploded view of the components, identifying key parts such as the Bracket, cable harness (Part #12521711244).
- Which models use the hardware listed in this Cable holder?
- The hardware and components featured in the Cable holder are specific to the 7 Series E32 730i produced during 1992. These technical specifications ensure that parts like the Bracket, cable harness (12521711244) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cable holder assembly?
- Each item in the Cable holder corresponds to the numbered list below the illustration. For the 7 Series E32 730i, you can identify the Bracket, cable harness by locating its position on the schematic, which then links to the official BMW part number 12521711244 for the Engine electrical system section.
