Cable Harness Fixings for BMW 5 Series E34 524td (1991)

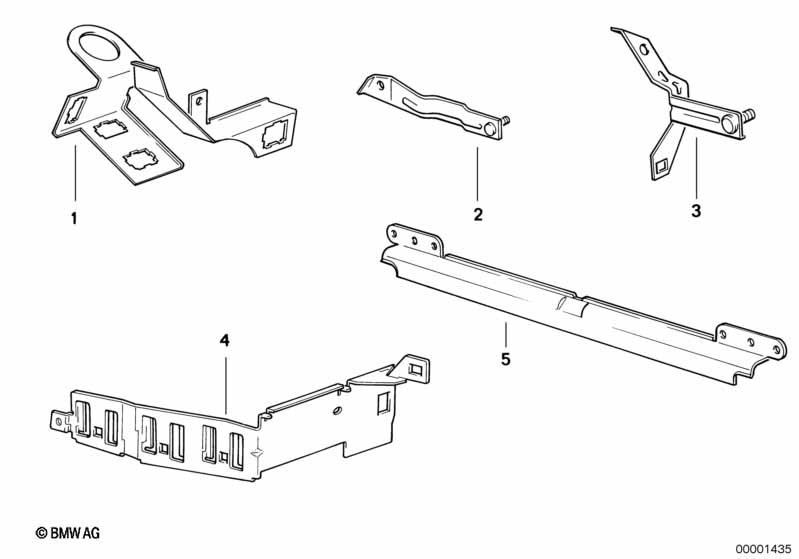

This Cable Harness Fixings technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 524td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Holder | 1 | 12512242101 | ENDED | Shop at ECS Tuning | |||||
| 02 | Holder | 1 | 12512242351 | $1.63 | ENDED | Shop at ECS Tuning | ||||
| 03 | Holder | 1 | 04/1988 | 12512242816 | ENDED | Shop at ECS Tuning | ||||
| 04 | Diagnosis plug bracket | 1 | 12521718011 | $7.10 | Shop at ECS Tuning | |||||
| 04 | Diagnosis plug bracket | MS/DS | 1 | 12521724295 | $10.93 | ENDED | Shop at ECS Tuning | |||
| 05 | Cover | 1 | 12521719549 | $6.36 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E34 524td Cable Harness Fixings?
- This technical diagram illustrates the Cable Harness Fixings within the Engine electrical system group for the 5 Series E34 524td produced during 1991. It provides a detailed exploded view of the components, identifying key parts such as the Holder (Part #12512242101).
- Which models use the hardware listed in this Cable Harness Fixings?
- The hardware and components featured in the Cable Harness Fixings are specific to the 5 Series E34 524td produced during 1991. These technical specifications ensure that parts like the Holder (12512242101) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cable Harness Fixings assembly?
- Each item in the Cable Harness Fixings corresponds to the numbered list below the illustration. For the 5 Series E34 524td, you can identify the Holder by locating its position on the schematic, which then links to the official BMW part number 12512242101 for the Engine electrical system section.
