Battery cable(battery rear) for BMW 3 Series E36 318is (1999)

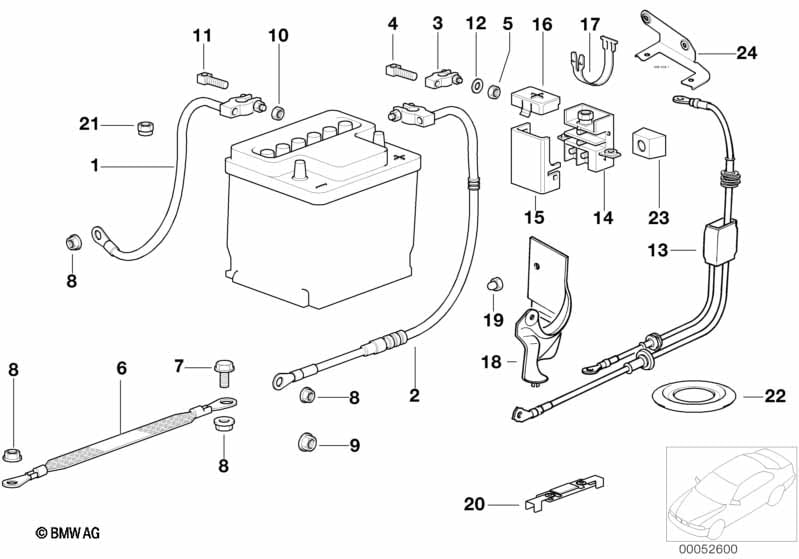

This Battery cable(battery rear) technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318is. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Battery cable negative | L=300 MM | 1 | 09/1996 | 12422245473 | $28.24 | Shop at ECS Tuning | |||
| For vehicles with Rear battery |
=Yes |
|||||||||
| 01 | Battery cable negative | 1 | 09/1996 | 12421732227 | $28.24 | Shop at ECS Tuning | ||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 02 | Battery cable (plus pole) | 1 | 01/1995 | 12421435684 | $183.87 | +core | Shop at ECS Tuning | |||
| For vehicles with Hot-climate version |
S823A=Yes |
|||||||||
| 02 | Battery cable (plus pole) | 1 | 12421435684 | $183.87 | +core | Shop at ECS Tuning | ||||
| 02 | Battery cable (plus pole) | L=3610 MM | 1 | 12421744230 | $183.87 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | Batteryclamp positive | 1 | 12421744426 | ENDED | Shop at ECS Tuning | |||||
| 04 | Square headed bolt | M8X27 | 1 | 07119976260 | $0.54 | Shop at ECS Tuning | ||||
| 06 | Ground cable | L=380MM | 1 | 12421737755 | $19.50 | Shop at ECS Tuning | ||||
| 07 | Hex bolt | M8X16-10.9-PHR | 1 | 07119913612 | $0.62 | Shop at ECS Tuning | ||||
| 08 | Hex nut | M8 | 8 | 07149125856 | $1.33 | Shop at ECS Tuning | ||||
| 09 | Nut | M6 | 7 | 07146973709 | $0.27 | Shop at ECS Tuning | ||||
| 11 | Square headed bolt | M8X27 | 1 | 07119976260 | $0.54 | Shop at ECS Tuning | ||||
| 14 | Base B+ | 1 | 12421433232 | $17.30 | Shop at ECS Tuning | |||||
| 15 | Cover | 1 | 12422246442 | $3.08 | Shop at ECS Tuning | |||||
| 16 | Cover | 1 | 12421730712 | $3.38 | Shop at ECS Tuning | |||||
| 17 | Shackle | 1 | 12521724197 | $0.68 | Shop at ECS Tuning | |||||
| For vehicles with Hot-climate version |
S823A=Yes |
|||||||||
| 20 | Fuse | 50A | 1 | 12411706111 | $9.55 | Shop at ECS Tuning | ||||
| 21 | Hex nut | M8 | 1 | 07149125856 | $1.33 | Shop at ECS Tuning | ||||
| 23 | Spacer holder | 1 | 12421740638 | $1.27 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 318is Battery cable(battery rear)?
- This technical diagram illustrates the Battery cable(battery rear) within the Engine electrical system group for the 3 Series E36 318is produced during 1999. It provides a detailed exploded view of the components, identifying key parts such as the Battery cable negative (Part #12422245473).
- Which models use the hardware listed in this Battery cable(battery rear)?
- The hardware and components featured in the Battery cable(battery rear) are specific to the 3 Series E36 318is produced during 1999. These technical specifications ensure that parts like the Battery cable negative (12422245473) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Battery cable(battery rear) assembly?
- Each item in the Battery cable(battery rear) corresponds to the numbered list below the illustration. For the 3 Series E36 318is, you can identify the Battery cable negative by locating its position on the schematic, which then links to the official BMW part number 12422245473 for the Engine electrical system section.
