Engine block pre heating for BMW 3 Series E30 324d

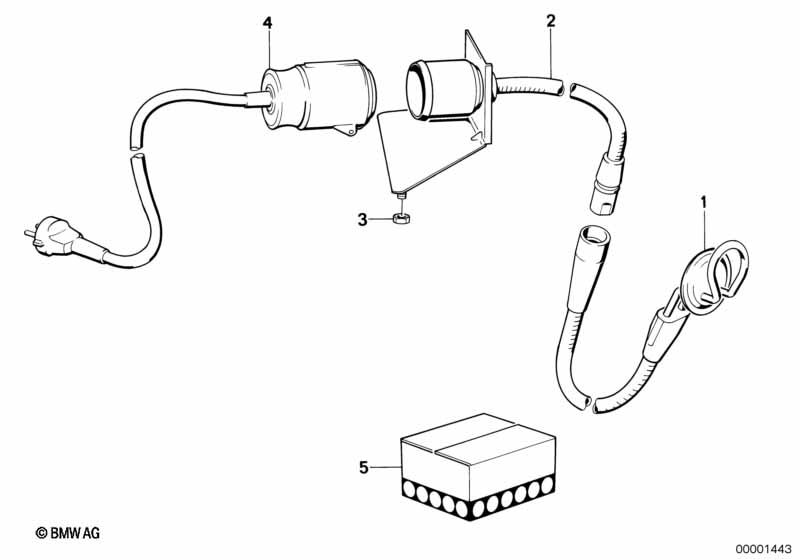

This Engine block pre heating technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 324d. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Engine block pre heat unit | 220V/500W | 1 | 12812242776 | ENDED | Shop at ECS Tuning | ||||
| 02 | Plug-in socket | 1 | 09/1987 | 12822241892 | ENDED | Shop at ECS Tuning | ||||
| 03 | Hex nut | M6-8-ZNNIV SI | 1 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 04 | Wiring set | 110 V / US-NORM | 1 | 12811724527 | $132.80 | ENDED | Shop at ECS Tuning | |||
| 04 | Wiring set | 220 V / ECE-DIN | 1 | 12822241963 | ENDED | Shop at ECS Tuning | ||||
| 05 | Kit engine block pre heat unit | 1 | 09/1987 | 12812242158 | ENDED | Shop at ECS Tuning | ||||
| 05 | Set mounting parts | 1 | 12822241894 | ENDED | Shop at ECS Tuning | |||||
| 05 | Kit engine block pre heat unit | 1 | 09/1987 | 12812242777 | ENDED | Shop at ECS Tuning | ||||
| 05 | Kit engine block pre heat unit | 1 | 09/1987 | 12812242158 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Plate | 1 | 09/1987 | 12822242100 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 324d Engine block pre heating?
- This technical diagram illustrates the Engine block pre heating within the Engine electrical system group for the 3 Series E30 324d. It provides a detailed exploded view of the components, identifying key parts such as the Engine block pre heat unit (Part #12812242776).
- Which models use the hardware listed in this Engine block pre heating?
- The hardware and components featured in the Engine block pre heating are specific to the 3 Series E30 324d. These technical specifications ensure that parts like the Engine block pre heat unit (12812242776) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Engine block pre heating assembly?
- Each item in the Engine block pre heating corresponds to the numbered list below the illustration. For the 3 Series E30 324d, you can identify the Engine block pre heat unit by locating its position on the schematic, which then links to the official BMW part number 12812242776 for the Engine electrical system section.
