Cable Harness Fixings for BMW 5 Series E34 525td (1995)

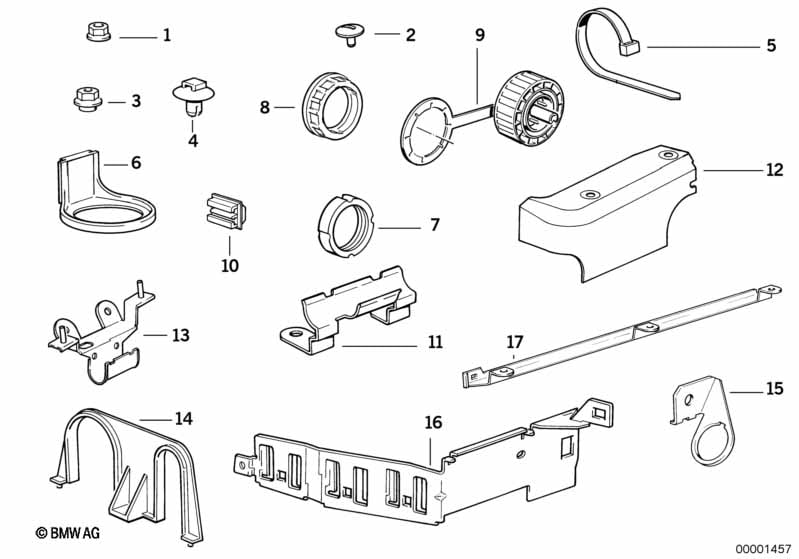

This Cable Harness Fixings technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 03 | Push-button | 4 | 17111709419 | $0.33 | Shop at ECS Tuning | |||||
| 06 | Diagnosis plug bracket | DIAGNOSE | 1 | 61131388867 | $2.18 | ENDED | Shop at ECS Tuning | |||
| 07 | Nut | DIAGNOSE | 1 | 12521711219 | $4.02 | Shop at ECS Tuning | ||||
| 09 | Cover, diagnostics plug | 1 | 12521724690 | $15.78 | Shop at ECS Tuning | |||||
| 11 | Bracket, cable harness | 1 | 12521718035 | $1.51 | ENDED | Shop at ECS Tuning | ||||
| 14 | Bracket, cable harness | 1 | 12521711244 | $1.68 | Shop at ECS Tuning | |||||
| 16 | Diagnosis plug bracket | 1 | 12521718011 | $7.10 | Shop at ECS Tuning | |||||
| 17 | Cover | 1 | 12521719549 | $6.36 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E34 525td Cable Harness Fixings?
- This technical diagram illustrates the Cable Harness Fixings within the Engine electrical system group for the 5 Series E34 525td produced during 1995. It provides a detailed exploded view of the components, identifying key parts such as the Push-button (Part #17111709419).
- Which models use the hardware listed in this Cable Harness Fixings?
- The hardware and components featured in the Cable Harness Fixings are specific to the 5 Series E34 525td produced during 1995. These technical specifications ensure that parts like the Push-button (17111709419) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cable Harness Fixings assembly?
- Each item in the Cable Harness Fixings corresponds to the numbered list below the illustration. For the 5 Series E34 525td, you can identify the Push-button by locating its position on the schematic, which then links to the official BMW part number 17111709419 for the Engine electrical system section.
