Cable Harness Fixings for BMW 8 Series E31 850Ci (1994)

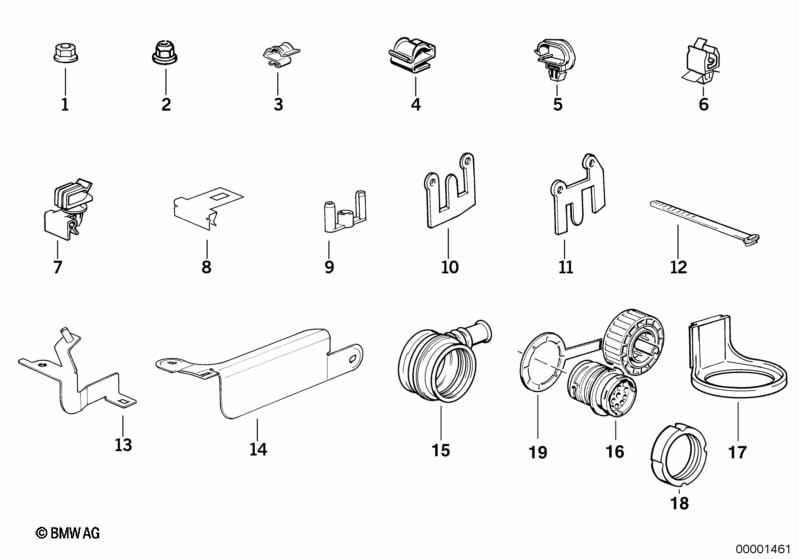

This Cable Harness Fixings technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Flange nut | M5 | 2 | 07141732625 | $0.14 | Shop at ECS Tuning | ||||
| 01 | Nut | M6 | 2 | 07146973709 | $0.27 | Shop at ECS Tuning | ||||
| 01 | Hex nut | M8 | X | 07149125856 | $1.33 | Shop at ECS Tuning | ||||
| 02 | Plastic nut for coarse threaded pin | M6 | 1 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
| 03 | Cable clamp | D=4,5MM | 1 | 61131353865 | $0.42 | Shop at ECS Tuning | ||||
| 04 | Cable clamp | D=9/B=4 | 2 | 61131351045 | $0.42 | Shop at ECS Tuning | ||||
| 05 | Cable holder | 1 | 12521284441 | $0.88 | Shop at ECS Tuning | |||||
| 06 | Cable holder | D=4-14MM | 1 | 61131369883 | $0.62 | Shop at ECS Tuning | ||||
| 07 | Cable holder | 2 | 24507557220 | $1.88 | Shop at ECS Tuning | |||||
| 08 | Plug-in connection bracket | 1 | 12521724684 | $7.72 | ENDED | Shop at ECS Tuning | ||||
| 09 | Cover | 1 | 12521714254 | $1.00 | Shop at ECS Tuning | |||||
| 10 | Holder, inductive sensor | 2 | 12521718037 | $7.17 | Shop at ECS Tuning | |||||
| 11 | Holder, inductive sensor | 2 | 12521718038 | $1.90 | Shop at ECS Tuning | |||||
| 12 | Cable tie | L=200MM/B=3,6MM | X | 61131367599 | $0.43 | Shop at ECS Tuning | ||||
| 13 | Holder | 1 | 12531724445 | $5.30 | ENDED | Shop at ECS Tuning | ||||
| 14 | Cover | B+ | 1 | 12521724535 | $3.79 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
