Additional alternator/single parts for BMW 8 Series E31 850Ci (1994)

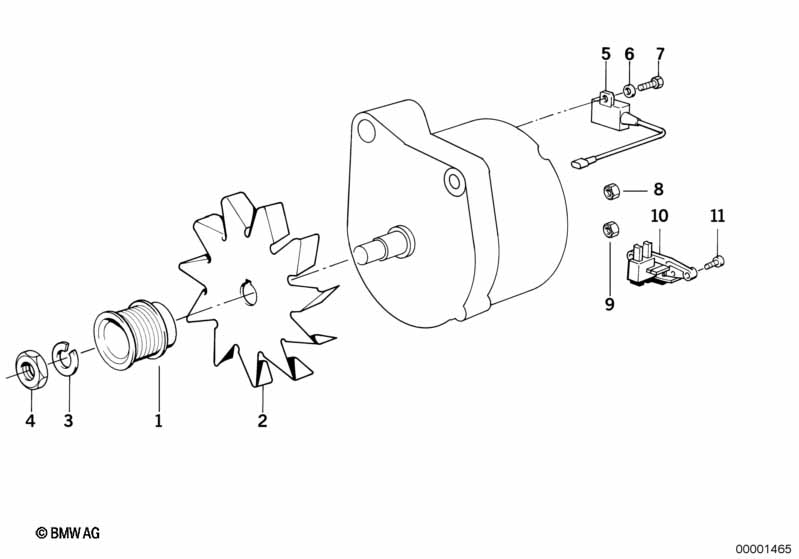

This Additional alternator/single parts technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Typ-Nr. 0 120 339 547 BMW Nr. 12 31 1 731 103 |
|||||||||
| 01 | Pulley alternator | 1 | 12311733337 | $36.27 | ENDED | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Additional alternator | 32A | X | 12311731103 | $645.64 | Shop at ECS Tuning | ||||
| 02 | Fan wheel | 1 | 12311733338 | $12.05 | ENDED | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Additional alternator | 32A | X | 12311731103 | $645.64 | Shop at ECS Tuning | ||||
| 03 | Spring washer | B16 | 1 | 07119933155 | $0.88 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Additional alternator | 32A | X | 12311731103 | $645.64 | Shop at ECS Tuning | ||||
| 04 | Hex nut | M16X1,5-04-ZNS | 1 | 07119901307 | $1.80 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Additional alternator | 32A | X | 12311731103 | $645.64 | Shop at ECS Tuning | ||||
| 05 | Suppression capacitor | 1 | 12311733402 | $20.87 | ENDED | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Additional alternator | 32A | X | 12311731103 | $645.64 | Shop at ECS Tuning | ||||
| 06 | Wave washer | B6-ZNS3 | 1 | 07119904496 | $1.78 | ENDED | Shop at ECS Tuning | |||
| 06 | Spring washer Black | B6-ZN | 1 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 06 | Washer | 5.3-140 HV-ZNS | 1 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Additional alternator | 32A | X | 12311731103 | $645.64 | Shop at ECS Tuning | ||||
| 07 | Fillister-head screw | M6X8 | 1 | 07119906436 | $0.20 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Additional alternator | 32A | X | 12311731103 | $645.64 | Shop at ECS Tuning | ||||
| 08 | Hex nut | M6-8-ZNNIV SI | 1 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 09 | Hex nut | M5-4-ZN | 1 | 07119921038 | $0.38 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Additional alternator | 32A | X | 12311731103 | $645.64 | Shop at ECS Tuning | ||||
| 10 | Voltage regulator | BOSCH | 1 | 12311735742 | $124.68 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Additional alternator | 32A | X | 12311731103 | $645.64 | Shop at ECS Tuning | ||||
| 11 | Fillister-head screw | 2 | 12311747251 | $0.58 | ENDED | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Additional alternator | 32A | X | 12311731103 | $645.64 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 8 Series E31 850Ci Additional alternator/single parts?
- This technical diagram illustrates the Additional alternator/single parts within the Engine electrical system group for the 8 Series E31 850Ci produced during 1994. It provides a detailed exploded view of the components, identifying key parts such as the Pulley alternator (Part #12311733337).
- Which models use the hardware listed in this Additional alternator/single parts?
- The hardware and components featured in the Additional alternator/single parts are specific to the 8 Series E31 850Ci produced during 1994. These technical specifications ensure that parts like the Pulley alternator (12311733337) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Additional alternator/single parts assembly?
- Each item in the Additional alternator/single parts corresponds to the numbered list below the illustration. For the 8 Series E31 850Ci, you can identify the Pulley alternator by locating its position on the schematic, which then links to the official BMW part number 12311733337 for the Engine electrical system section.
