Cable Harness Fixings for BMW 3 Series E36 323ti (2000)

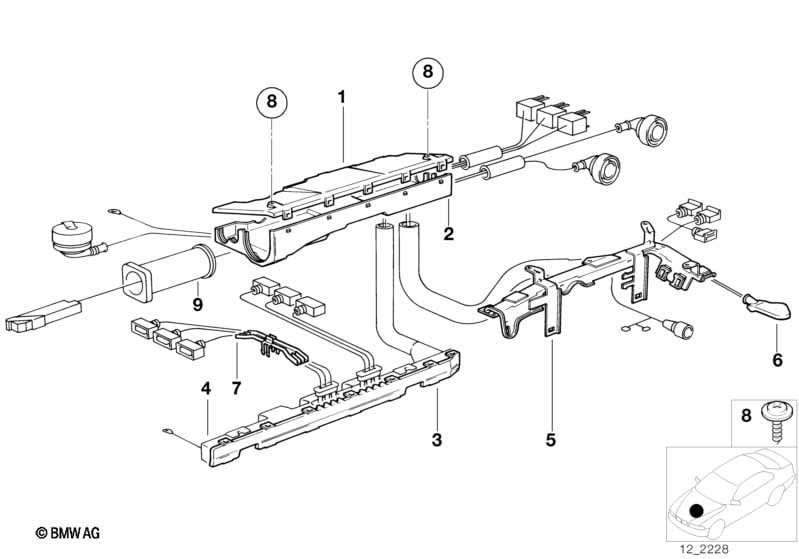

This Cable Harness Fixings technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 323ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 03 | Covering Upper | 1 | 12521703521 | $5.13 | ENDED | Shop at ECS Tuning | ||||
| 04 | Covering Lower | 1 | 12521703520 | $7.88 | ENDED | Shop at ECS Tuning | ||||
| 05 | Carrier | 1 | 12521703519 | $17.20 | Shop at ECS Tuning | |||||
| 08 | Self tapping screw | 4X16 | 2 | 12521724711 | $0.22 | Shop at ECS Tuning | ||||
| 09 | Rubber boot | 1 | 12521724682 | $6.58 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 323ti Cable Harness Fixings?
- This technical diagram illustrates the Cable Harness Fixings within the Engine electrical system group for the 3 Series E36 323ti produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Covering Upper (Part #12521703521).
- Which models use the hardware listed in this Cable Harness Fixings?
- The hardware and components featured in the Cable Harness Fixings are specific to the 3 Series E36 323ti produced during 2000. These technical specifications ensure that parts like the Covering Upper (12521703521) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cable Harness Fixings assembly?
- Each item in the Cable Harness Fixings corresponds to the numbered list below the illustration. For the 3 Series E36 323ti, you can identify the Covering Upper by locating its position on the schematic, which then links to the official BMW part number 12521703521 for the Engine electrical system section.
