Engine wiring harness for BMW 3 Series E36 318i (1999)

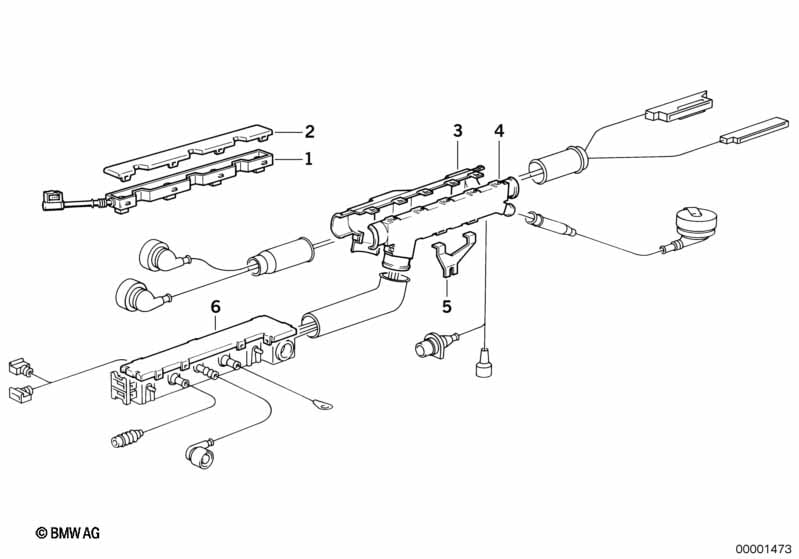

This Engine wiring harness technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Plug-board | 1 | 12511732222 | Shop at ECS Tuning | ||||||
| 02 | Covering Upper | 1 | 12521718189 | $7.57 | ENDED | Shop at ECS Tuning | ||||
| 03 | Covering Upper | 1 | 12521727991 | Shop at ECS Tuning | ||||||
| 04 | Covering Lower | 1 | 12521727990 | ENDED | Shop at ECS Tuning | |||||
| 05 | Holder | 1 | 12521734002 | ENDED | Shop at ECS Tuning | |||||
| 06 | Covering Upper | 1 | 12521727664 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
