Cable holder for BMW 3 Series E36 323i (1999)

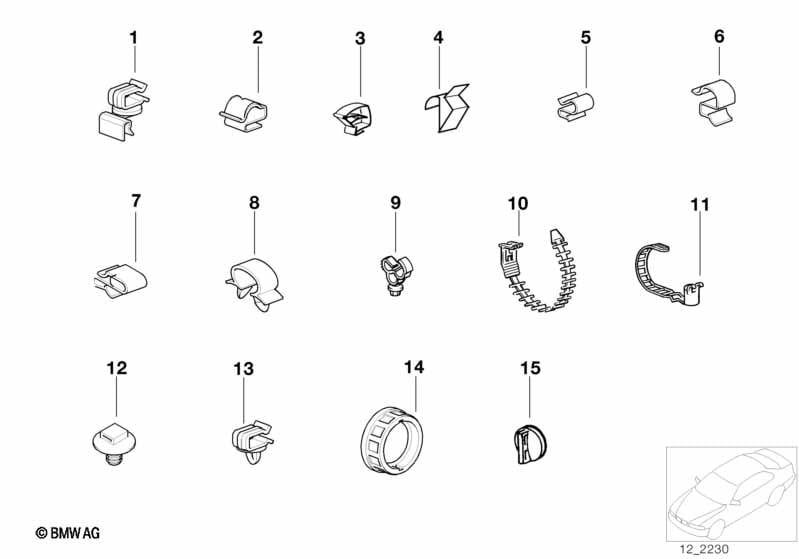

This Cable holder technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Cable clamp | D=9/B=4 | 1 | 61131351045 | $0.42 | Shop at ECS Tuning | ||||
| 03 | Cable holder | 2 | 61131378529 | $0.68 | Shop at ECS Tuning | |||||
| 05 | Fixing clamp | 1 | 11787547315 | $0.58 | Shop at ECS Tuning | |||||
| 06 | Holder | 2 | 12521719734 | $0.63 | Shop at ECS Tuning | |||||
| 08 | Tubing support | D=10,8MM | 1 | 64111364073 | $0.57 | Shop at ECS Tuning | ||||
| 09 | Tubing support | 1 | 61131379351 | $0.68 | Shop at ECS Tuning | |||||
| 10 | Cable tie | 5 | 61131391721 | $1.77 | Shop at ECS Tuning | |||||
| 11 | Cable tie | L=119MM | 3 | 61138357028 | Shop at ECS Tuning | |||||
| 12 | Cable strap bracket | 1 | 61131390946 | $0.48 | Shop at ECS Tuning | |||||
| 13 | Cable holder | 1 | 12521284441 | $0.88 | Shop at ECS Tuning | |||||
| 13 | Cable holder | 1 | 61138353135 | $0.35 | Shop at ECS Tuning | |||||
| 14 | Lock Ring | 1 | 12521732696 | $2.10 | Shop at ECS Tuning | |||||
| 15 | Push-button | 2 | 61131373669 | $0.93 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 323i Cable holder?
- This technical diagram illustrates the Cable holder within the Engine electrical system group for the 3 Series E36 323i produced during 1999. It provides a detailed exploded view of the components, identifying key parts such as the Cable clamp (Part #61131351045).
- Which models use the hardware listed in this Cable holder?
- The hardware and components featured in the Cable holder are specific to the 3 Series E36 323i produced during 1999. These technical specifications ensure that parts like the Cable clamp (61131351045) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cable holder assembly?
- Each item in the Cable holder corresponds to the numbered list below the illustration. For the 3 Series E36 323i, you can identify the Cable clamp by locating its position on the schematic, which then links to the official BMW part number 61131351045 for the Engine electrical system section.
