Sensors for BMW 7 Series E32 740iL (1994)

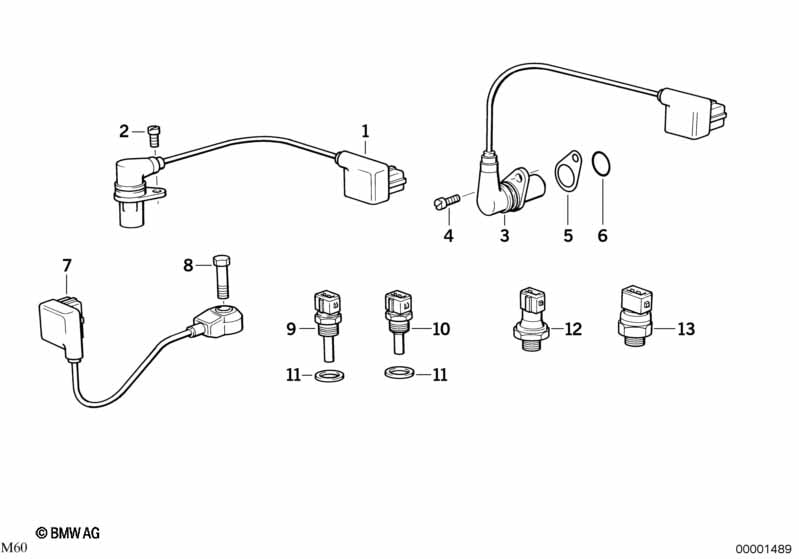

This Sensors technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 740iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Crankshaft speed sensor | 1 | 12141729292 | Shop at ECS Tuning | ||||||
| 03 | Trigger contact | 1 | 12141729291 | Shop at ECS Tuning | ||||||
| 05 | Intermediate plate | 1 | 12141733000 | $1.18 | Shop at ECS Tuning | |||||
| 06 | O-ring | 18X2 | 1 | 12141727220 | $0.70 | Shop at ECS Tuning | ||||
| 07 | Ping Sensor | 4 | 05/1993 | 12141702163 | $90.58 | Shop at ECS Tuning | ||||
| 09 | Engine coolant temp sensor | 2-POL | 1 | 12621747281 | $31.72 | ENDED | Shop at ECS Tuning | |||
| 09 | Engine coolant temp sensor | 2-POL | 1 | 12621710535 | $41.29 | Shop at ECS Tuning | ||||
| 10 | Temperature sensor, water | M14X1,5 | 1 | 12621288158 | $40.02 | Shop at ECS Tuning | ||||
| 11 | Gasket ring | A14X18-AL | 2 | 07119963200 | $0.38 | Shop at ECS Tuning | ||||
| 12 | Oil pressure switch | M12X1,5 | 1 | 12618611273 | Shop at ECS Tuning | |||||
| 13 | Temperature switch | 44 CEL | 1 | 12631717443 | $31.13 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E32 740iL Sensors?
- This technical diagram illustrates the Sensors within the Engine electrical system group for the 7 Series E32 740iL produced during 1994. It provides a detailed exploded view of the components, identifying key parts such as the Crankshaft speed sensor (Part #12141729292).
- Which models use the hardware listed in this Sensors?
- The hardware and components featured in the Sensors are specific to the 7 Series E32 740iL produced during 1994. These technical specifications ensure that parts like the Crankshaft speed sensor (12141729292) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Sensors assembly?
- Each item in the Sensors corresponds to the numbered list below the illustration. For the 7 Series E32 740iL, you can identify the Crankshaft speed sensor by locating its position on the schematic, which then links to the official BMW part number 12141729292 for the Engine electrical system section.
